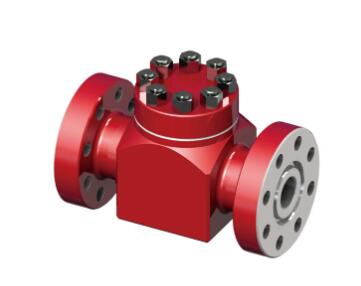

Check Valve

The check valve is a special valve that prevents the backflow of mud fluid, etc. It can be used to protect the pump in the case of shutdown. The valve adopts spring precompression type structure, which is mainly composed of valve body, Fan body, fan seat, gland and other parts. The valve is designed and manufactured according to API Spec 6A standard, with good self-sealing effect and long service life of Fan rubber.


Specification

Working peeasure Mpa(Psi)

Nominal Diameter mminch

Specification Level

Performance level

Material Grade

21MPa(3000Psi)

80(3-1/8)65(2-9/16)

52(2-1/16)

PSL1 ~ 4

PR1 ~ 2

AABBCCDDEEFF

35MPa(5000Psi)

80(3-1/8)65(2-9/16)

52(2-1/16)

PSL1 ~ 4

PR1 ~ 2

AABBCCDDEEFF

70MPa(10000Psi)

78(3-1/16)   65(2-9/16)

52(2-1/16)

PSL1 ~ 4

PR1 ~ 2

AABBCCDDEEFF

105MPa(15000Psi)

78(3-1/16)   65(2-9/16)

52(2-1/16)

PSL1 ~ 4

PR1 ~ 2

AABBCCDDEEFF

140MPa(20000Psi)

78(3-1/16)   65(2-9/16)

52(2-1/16)

PSL1 ~ 4

PR1 ~ 2

AABBCCDDEEFF
