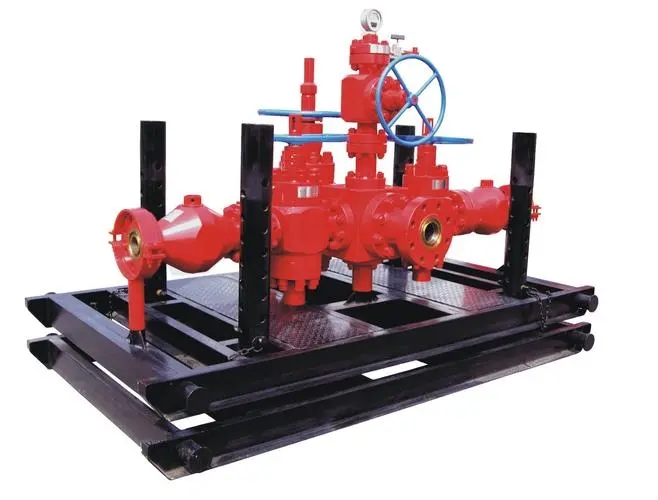

Kill Manifold

Kill manifold is an essential well control equipment for implementing a new balanced drilling process. During the drilling process, when the mud circulates uncontrollably downwards through the drill pipe, the equipment can directly connect the mud pump to pump mud into the well, thereby achieving the goal of controlling oil and gas well pressure. This is of great significance for preventing oil layer pollution and providing reliable data for discovering new oil layers

Specification:

Model

Working Pressure Mpa (psi)

The Main Path Diameter mm(inch)

The Bypass Diameter mm(inch)

Product Performance level

Working Temperature

Work medium

Connection type

Standard

YJG140

140Mpa (20000psi)

103(4-1/16)  78(3-1/16)

65(2-9/16)   52(2-1/16)

78(3-1/16)    65(2-9/16)

52(2-1/16)

PRL3

PU(-29ºC~121ºC)

Mud,oil and drilling fluid

Flange

API16C

YJG105

105MPa(15000Psi)

103(4-1/16)  78(3-1/16)

65(2-9/16)   52(2-1/16)

78(3-1/16)    65(2-9/16)

52(2-1/16)

PRL3

PU(-29ºC~121ºC)

Mud,oil and drilling fluid

Flange

API16C

YJG70

70MPa(10000Psi)

103(4-1/16)  78(3-1/16))

 65(2-9/16)   52(2-1/16)

103(4-1/16)    78(3-1/16)) 65(2-9/16)   52(2-1/16)

PRL3

PU(-29ºC~121ºC)

Mud,oil and drilling fluid

Flange

API16C

YJG35

35MPa (5000Psi)

103(4-1/16)  80(3-1/8)

 65(2-9/16)   52(2-1/16)

103(4-1/16)    80(3-1/8)

65(2-9/16)   52(2-1/16)

PRL3

PU(-29ºC~121ºC)

Mud,oil and drilling fluid

Flange

API16C

YJG21

21MPa (3000Psi)

103(4-1/16)  80(3-1/8)

 65(2-9/16)  52(2-1/16)

103(4-1/16)    80(3-1/8)

65(2-9/16)   52(2-1/16)

PRL3

PU(-29ºC~121ºC)

Mud,oil and drilling fluid

Flange

API16C
