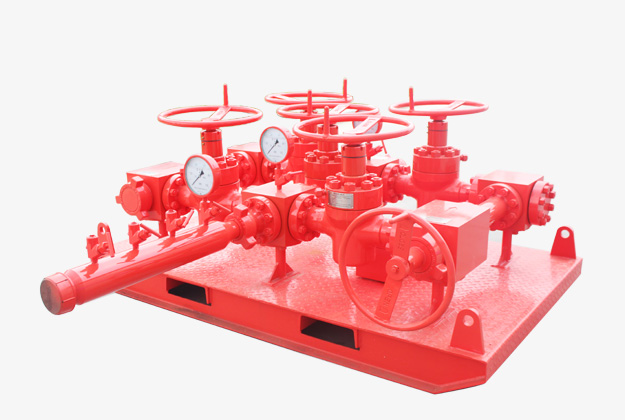

Nozzle Manifold

Nozzle Manifold

During the logging process of oil and gas production wells using a nozzle manifold, it is connected to the nozzle manifold through a wellhead pipeline. The pressure and temperature of the pipeline fluid are measured through a fixed size nozzle, which is throttled to calculate the production and production capacity of oil, gas, and wells. This is an essential equipment for completing logging operations. The manifold adopts flange connection and parallel gate valve, which is suitable for long-term operation in multiple fluid environments. The manifold has a long service life and is safe and reliable.

Adopting flange type connection, safe and reliable, with long service life; The outlet is connected by the union to facilitate the installation of on-site pipelines; Adopting forged flange cross section and other structures, it has high compressive strength and is also convenient for collecting and monitoring pressure data; Throttling forms can be selected according to user needs.

Specification

Nominal Diameter

2 1/16"~ 4 1/16"

Working Pressure

35-105Mpa(5000-15000psi)

Working   Temperature

PU(-29ºC~121ºC)

Product Performance   level

PRL1, PRL2

Standard

API 6A,API 16C
