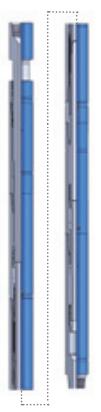

Hydraulic-mechanical Drilling Jar

Hydraulic-mechanical drilling jar integrates hydraulic principle with mechanical principle, it’s a new type drilling jar, which can suit for all kinds of drilling operations, and go with drilling tools assembly to descend the well when used. The drilling tools are often sticked due to many kinds of reasons in down hole when in normal drilling operations, and this type drilling jar is an effective tool for releasing stuck. When the drilling tools are sticked, it can make drilling jar generate upward or downward jarring force through lifting and landing the drill strings, so it can release resistance and the stick by many time jarring, and recover normal drilling operation promptly. Meanwhile avoid resistance and stick to become further accident, and cause larger economic losses. If releasing force is failed, it can dynamiclly adjust at anytime on sites and be easy to use.

Specification

OD
mm(inch)

ID
mm(inch)

Conn.

Max.
Tensile
load KN

Max.
Working
Torque
(KNm)

Rated Force

Upward
Jarring
Force
(KN)

Downward
Jarring
Force
(KN)

121(43/4)

44.5(1 314)

NC38

1100

15

35030

25030

165(6 1/2)

57.2(2 1/4)

NC50

2000

25

700±30

35030

203(8)

70(2 3/4)

6 5/8REG

2800

35

100030

50030



How to order: Sizes & connections;Please specify special requirements.
