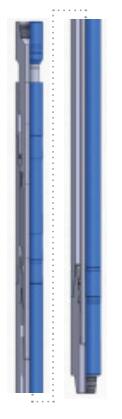

Double Way Hydraulic Shock Absorber

Double way hydraulic shock absorber is worked with cone bit or abrasives core bit to absorb the shock force in vertical and axial direction. It can not only absorb and reduce the vertical shock force and load, and also can absorb and reduce the axial shock loading, so that keep the normal bit pressure and torque. It will realize the best bit pressure and rotate speed in drilling or coring operation. It is better than normal shock absorber on increasing bit working life, protecting the drilling tools and ground equipments, reducing the drilling costs and increasing the drilling efficiency. It is an ideal shock absorber for drill string.

OD
mm(inch)

ID
mm(inch)

Max.
Stroke
mm(inch)

Max.
Tensile
Load KN

Max.
Working
Stroke
KN·m

Max.
Tensile
Load
KN

Conn.
API

Working
Temperature
c

121(4 3/4)

38.1(1 1/2)

80(3 1/8)

300

10

1200

NC38

-40~120

159(6 1/4)

44.5(13/4)

100(4)

350

15

1500

NC50

-40 ~ 120

178(7)

50(2)

100(4)

350

15

1600

NC50

-40~120

203(8)

65(2 1/2)

120(43/4)

450

20

1960

65/8REG

-40~ 120

229(9)

71(2 13/16)

140(5 1/2)

540

20

2160

75/8REG

-40~ 120

How to order: Sizes & connections;Please specify special requirements
