Signal -plug Casing cement head

Signal -plug Casing cement head

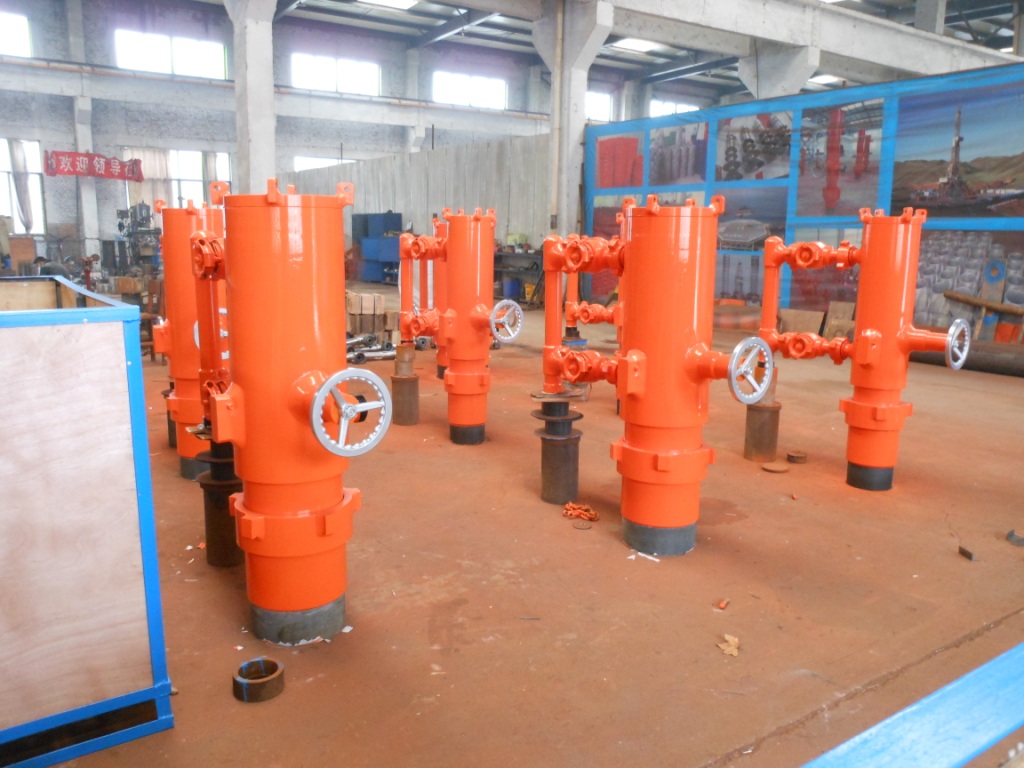

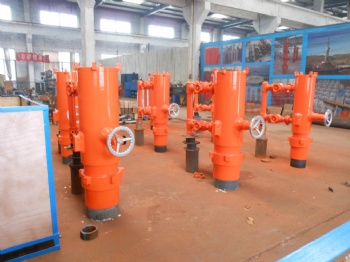

It’s a special tool for pumping slurry and releasing plug. The DSC Single-Plug Cement Head can be connected with casing.

Description
Inquiry

Features

1. Main parts are made from AISI4145H alloy steel.

2. Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing. It is manufactured utilizing API grade steels with connections for API 8 round, buttress and premium threads.

3. Positive lever indicates plug releasing.

4. Balance pipe is developed.

Specification

Size(mm) (in)	φ139.7 (5 1/2")	φ168 (6 5/8")	φ177.8 (7")	φ194 (7 5/8")	φ244.5 (9 5/8")	φ273 (10 3/4")	φ339.7 (13 3/8")
Overall Length(mm)	1460	1500	1500	1550	1750	1750	1780
Manifold Conn.	2"Union
l.D.of Plug Container(mm)	φ125	φ150	φ160	φ175	φ225	φ250	φ320
length of Plug Container(mm)	400	450	450	450	550	550	600
Working Pressure(MPa)	3550	3550	3550	3550	3550	35	35
