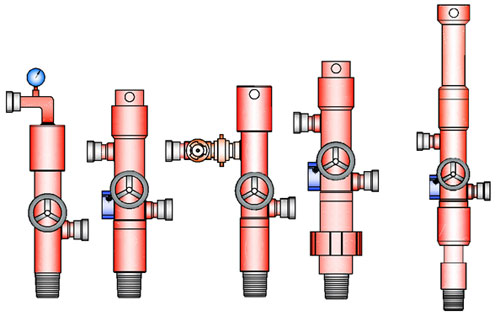

Signal -plug drill pipe cement head

It’s a special tool for pumping slurry and releasing plug. The ZSC Single-Plug Cement Head can be connected with Drill pipe.

Features

1. Main parts are made from AISI4145H alloy steel.

2. Positive lever indicates plug releasing.

Specification

Size, mm

Specifications(in)

φ73

(2 7/8")

φ88.9

(3 1/2")

φ127

(5")

φ139.7

(5 1/2")

Overall Length(mm)

910

1020,1600

1130,1850

1200,1900

Manifold

2"Union

l.D. of Plug Container, mm

φ55

φ72

φ102

φ118

Length of Plug Container, mm

290

340

380

400

Rated Pressure, MPa

35,50

35,50

35,50

35,50

Threads

2 7/8IF  NC31

3 1/2lF  NC38

4 1/2lF NC50

FH5 1/2
