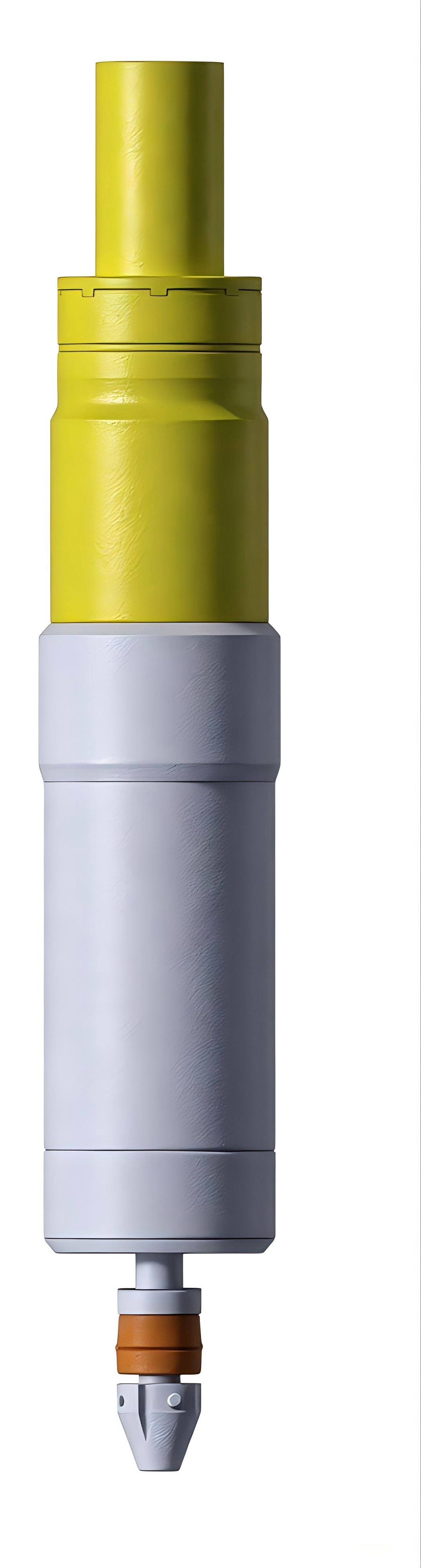

Mechanical external-Grip casing running tools
Mechanical external-grip casing running tools represent a major innovation in casing running operations. The key priority in such operations is to safely and reliably run casing to the bottom of the wellbore.Our external-clamp mechanical casing running tool integrates core functions including casing make-up, axial hoisting and lowering, rotary driving, and mud circulation. It ensures smooth running of casing to the designed depth during the entire operation, effectively enhancing the success rate, safety, and overall operational efficiency of casing running.
Technical Specification
ID | Casing Sizes | Seal Pressure | Max.Tensile Load | Max.Working Torque | OAL | Connection |
mm(inch) | inch | MPa(PSI) | KN(Ibf) | KNm(Ibft) | mm(ft) | |
25.4(1) |
4-1/2～5-1/2 |
35(5,000) |
3500(780,000) |
26(19,200) |
2080(6.8) |
6-5/8 REG |
