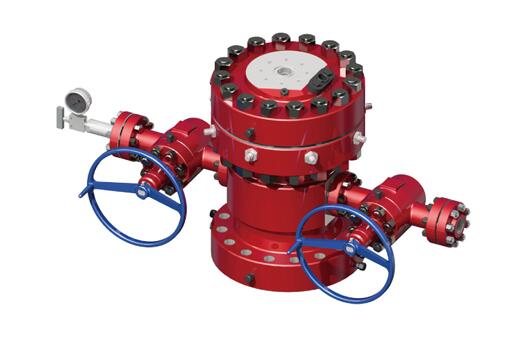

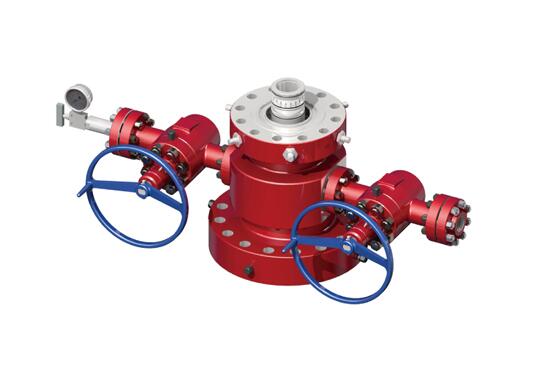

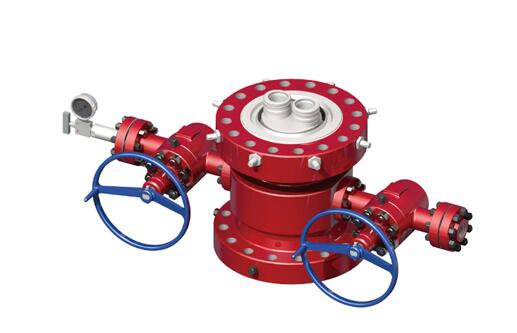

Tubing Head Spool

The tubing head is usually a large cross with flanges at both ends, installed on the upper flange of the casing head to suspend the tubing string and seal the annular space between the tubing string and the oil reservoir casing. It consists of a tubing head cross and a tubing hanger.

The function of the tubing head

Suspend the tubing string in the well; Sealing the annular space of oil pipes and casings; Provide a transition for connecting the casing head down and the Christmas tree up; Complete casing injection and well flushing operations through the two side ports on the tubing head cross body.



Specification

Product Name

Tubing Head

Working Pressure

2000 ~10000psi  (14 Mpa   ~105 Mpa)

Nominal Bore

7-1/16 ~13-5/8

Working Medium

oil, natural gas,   mud and gas containing H2S,CO2

Working Temperature

-46°C~121°C(Class LU)

Material Class

AA,BB,CC,DD,EE,FF,HH

Specification level

PSL1-4

Performance levels:

PR1~PR2
