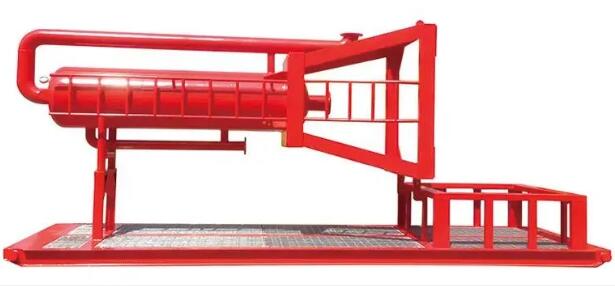

Mud Gas Separator
Mud gas separator is a specialized equipment used to purify the gas influx drilling fluid from the choke manifold during the drilling process, remove the air and natural gas mixed in the drilling fluid, and recover the preliminarily purified drilling fluid. When the gas invasion drilling fluid from the choke manifold passes through the inlet pipeline of the liquid gas separator and is injected into the tank from the top of the tank; Gas cutting drilling fluid collides at a high speed by hitting the baffle, the bubbles contained in the drilling fluid are broken and released, and then a thin layer of drilling fluid flows through the metal surface. The flow resistance can generate turbulence and bring these bubbles to the surface for separation. The separated gas is discharged from the separator exhaust pipeline for recovery or ignition; The drilling fluid deposited at the bottom of the tank is discharged through the liquid outlet and directed to the drilling fluid purification system for further purification treatment.
Specification
Mud Handling capacity m3/h | 6000 | 7000 | 8000 | 8000 |
Gas Handling capacity m3/h | 10000 | 12000 | 14700 | 14700 |
Clinder Diameter mm | 800 | 1000 | 1200 | 1400 |
Cylinder Vlume m3 | ≥1.6 | ≥3.0 | ≥4.0 | ≥6.0 |
Dsign Pessure MPa | 1.0 | 1.0 | 1.0 | 1.0 |
Gas Outlet Diameter mm | 159(6") | 219(8") | 219(8") | 219(8") |
Mud Outlet Diameter mm | 219(8") | 219(8") | 273(10") | 273(10") |
Inlet Diameter mm | 133(4") | 133(4") | 133(4") | 133(4") |
