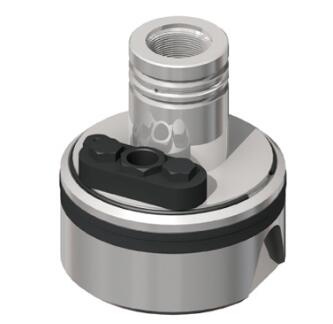

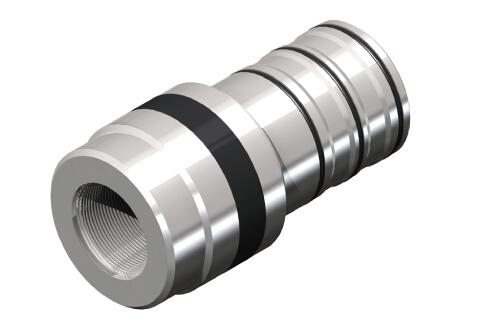

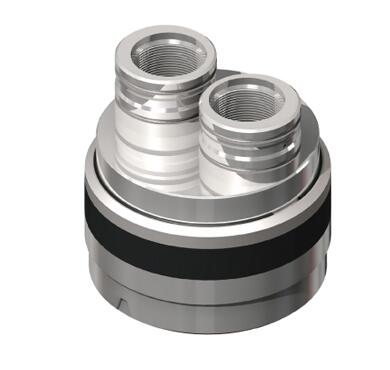

Tubing Head Hanger

Tubing hanger is a type of device that supports the tubing string and seals the annular space between the tubing and casing
Device. The sealing method of the tubing hanger is to connect the tubing hanger to the tubing, utilizing the gravity of the tubing
Sitting inside the large four-way cone of the tubing hanger and sealing, easy to operate, fast and safe to replace the wellhead
Therefore, it is a commonly used method for medium to deep wells and conventional wells.

The tubing hanger is divided into three series: rubber seal, rubber+metal, and metal+metal.

The working pressure can reach up to 20000 Psi, equipped with a reliable "Y" type secondary seal. And different configurations can be provided according to customer needs.Sealed product equipment, including underground control pipelines and sealing technology.

Specification

Woking Pressure

2000Psi

3000Psi

5000Psi

10000Psi

10000Psi

15000Psi

20000Psi

 Top   Flange

7-1/16”

7-1/16‘’

7-1/16“”

7-1/16’

11”

7-1/16’

11”

Bottom Flange

9"or11"

9"or11"

9"or11"

9"or11"

11”

11”

11”

Bypass Diameter

21/16”or 29/16”

21/16”or 29/16”

21/16”or 29/16”

21/16”or 29/16”

21/16”or 29/16”

21/16”or 29/16”

21/16”or 29/16”

Tubing hanger thread

23/8UP TBG or User Requirements

23/8UP TBG or User Requirements

23/8UP TBG or User Requirements

31/2 UP TBG or User Requirements

31/2 UP TBG or User Requirements

31/2 UP TBG or User Requirements

31/2 UP TBG or User Requirements

Tubing hanger Type

Cone hanging or straight hanging

Cone hanging or straight hanging

Cone hanging or straight hanging

Cone hanging or straight hanging

Cone hanging or straight hanging

Cone hanging or straight hanging

Cone hanging or straight hanging
