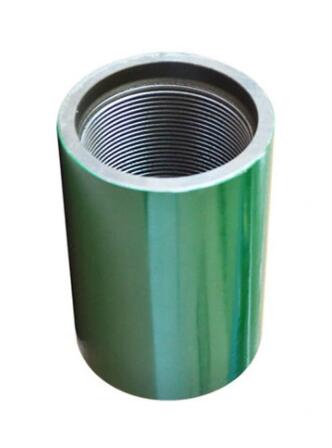

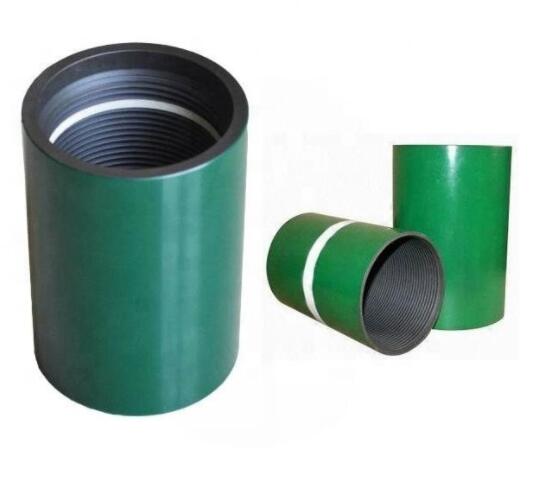

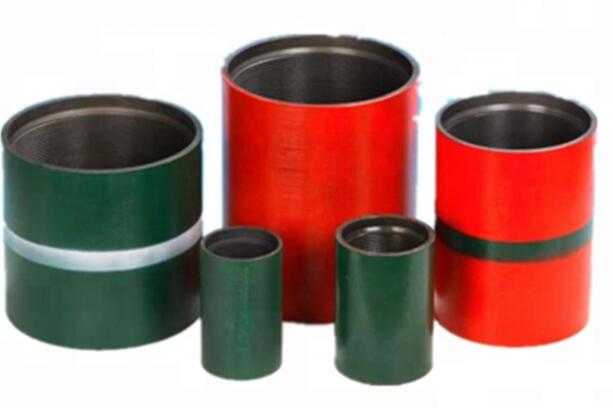

API-5CT standard EUE Tubing coupling

Tubing coupling is a kind of oil field drilling tool, which is mainly used for tubing connection.The coupling mainly solves the problem of fatigue fracture caused by stress concentration.


Technical Parameter

Name

Thread

Specifications

O.D*L(mm)

Weight(kg)

Load carring width(mm)

API 5CT 2 7/EUE  tubing coupling

NU

2-3/8"TBG

73.02*107.95

1.28

4.76

2-7/8"TBG

88.90*130.18

2.34

4.76

3-1/2"TBG

107.95*142.88

3.71

4.76

4"TBG

120.65*146.05

4.35

4.76

4-1/2"TBG

132.08*155.58

4.89

4.76


EU

2-3/8"UPTBG

77.80*123.82

1.55

3.97

2-7/8"UPTBG

93.17*133.35

2.4

5.56

3-1/2"UPTBG

114.30*146.05

4.1

6.35

4"UPTBG

127.00*152.40

4.82

6.35

4-1/2"UPTBG

141.30*158.75

6.05

6.35
