DESCRIPTION

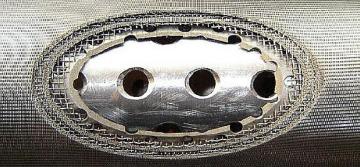

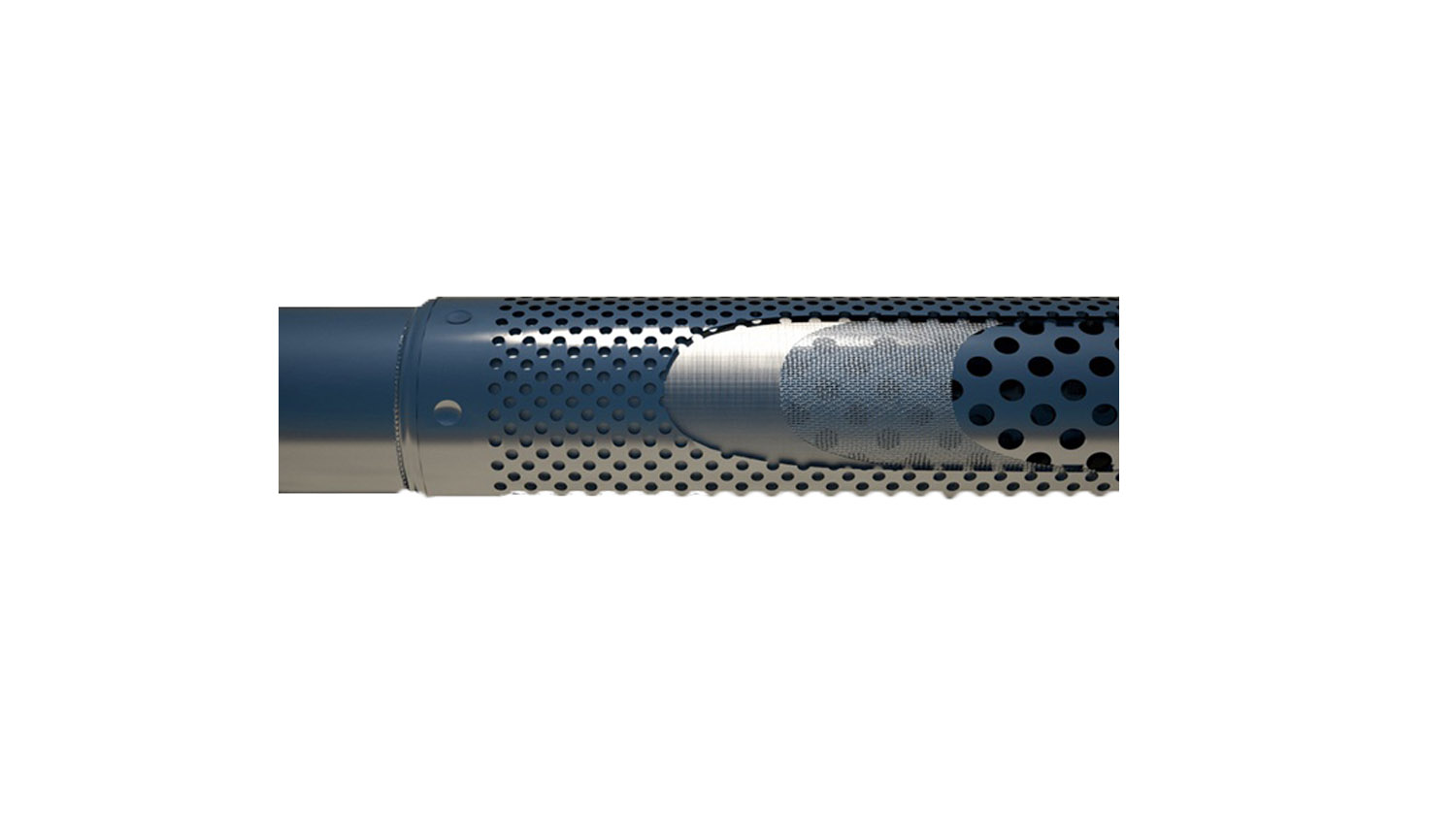

Multilayers Premium Screen performance is derived from two characteristics,the filter media and secondly the overall construction of the screen. Consists of base pipe, layered filtration jacket and outer shroud.

●Base-pipe:OCTG Base-pipe perforation 6-7%.

●Common metallurgies:L80,13Cr,Super 13Cr

●Common connections:API&all Premium connections

●Inner Drainage Layer:5Mesh

●Common metallurgies :SS304,316L,Alloy20

●Filter: 2-Layer Sintered Mesh

●Common Metallurgies:316L,Alloy20

●Common Pore Sizing:FINEum,MEDIUM um,COARSE,um.

●Out Drainage Layer:5 Mesh

●Shroud:20% open area

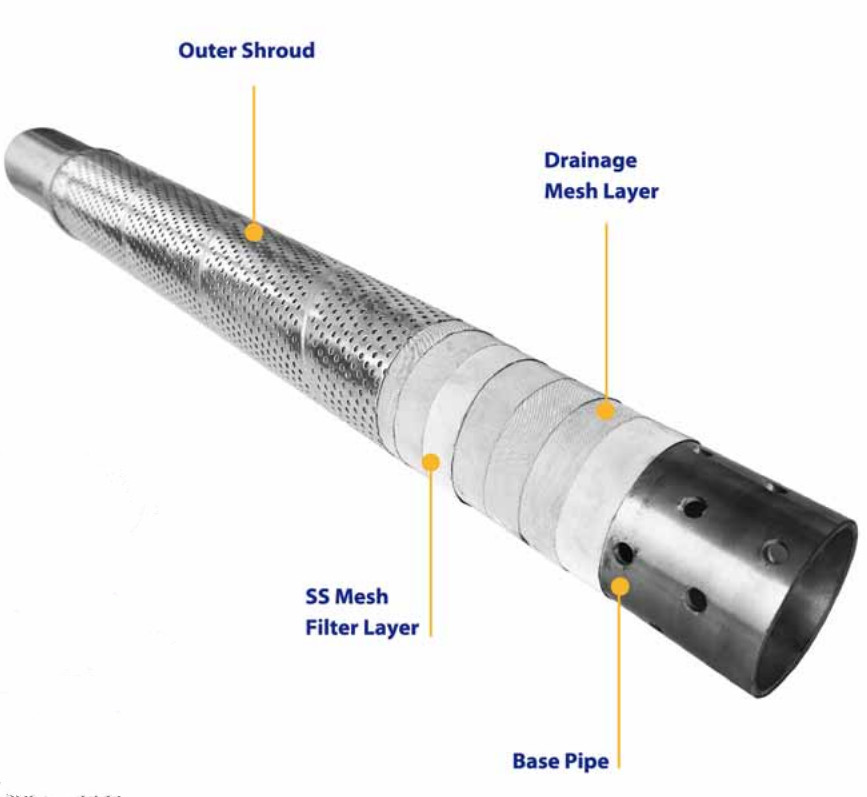

MULTILAYERS PREMIUM SCREEN description (2).jpg

Specification

Base Pipe			Filtration Jacket Parameter
Outer Diameter (in)	Nominal Size (mm)	Max Outer Diameter(mm)		Micro Retention (mm)	Length (m)
2-3/8	60.3	75		60~350	3.2-13
2-7/8	73	90		60~350	3.2-13
3-1/2	89	108		60~350	3.2-13
4	101.6	120		60~350	3.2-13
4-1/2	114.3	132		60~350	3.2-13
5	127	148		60~350	3.2-13
5-1/2	139.7	158		60~350	3.2-13
6-5/8	168.3	190		60~350	3.2-13
