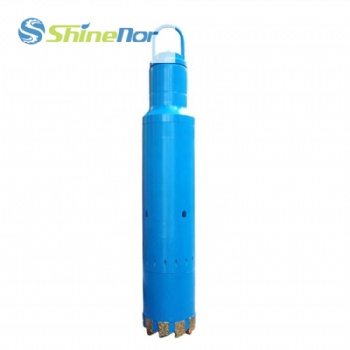

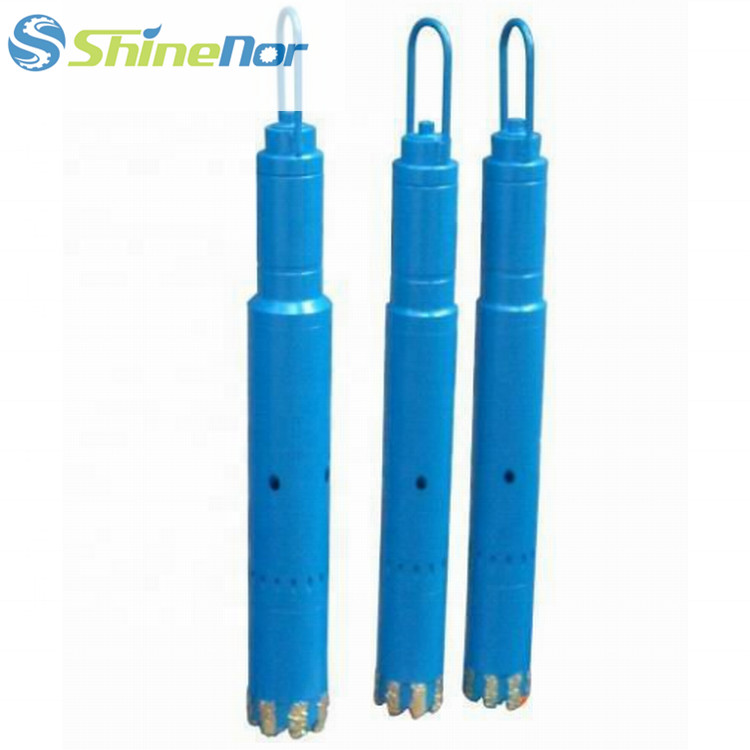

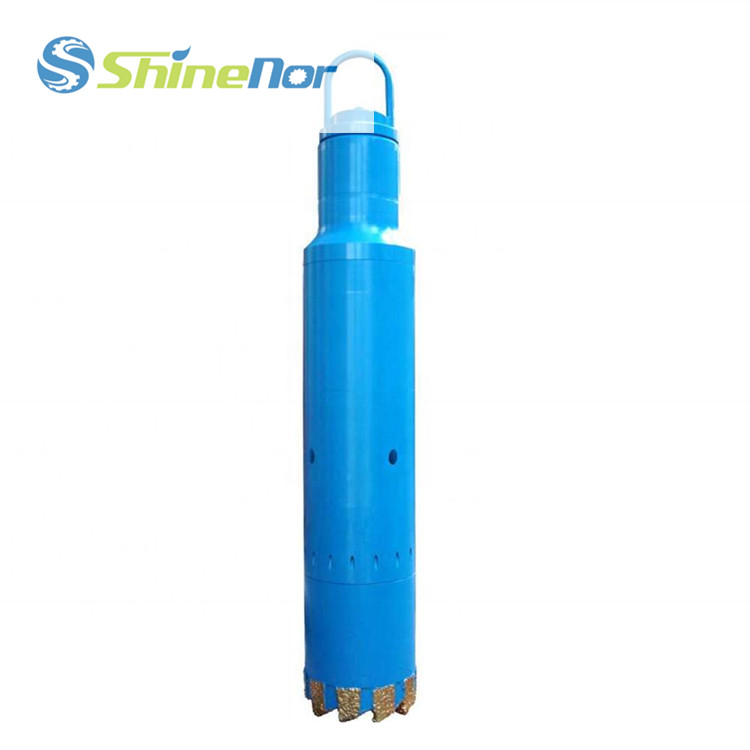

Reverse Circulation Junk Baskets

API downhole fishing tools Reverse Circulation Junk Basket

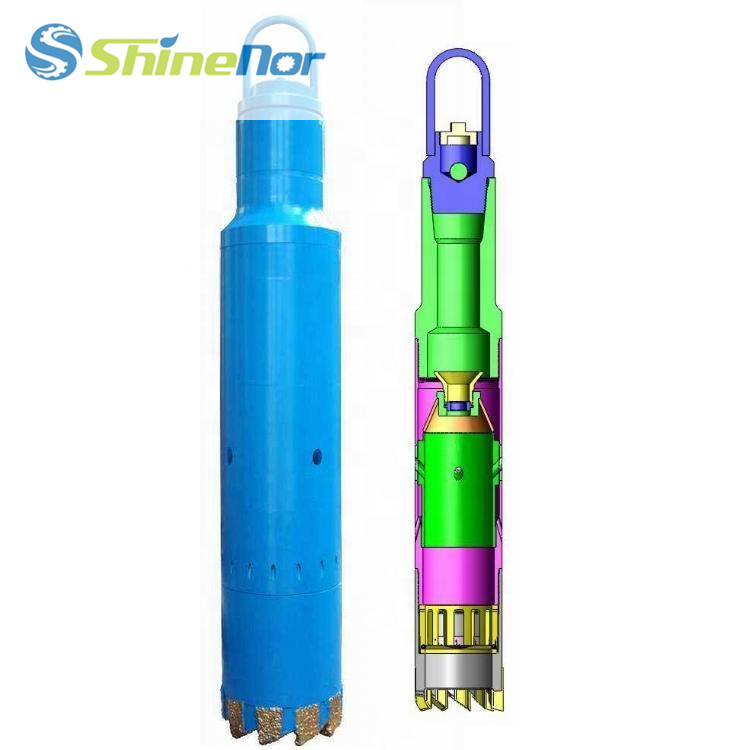

Reverse circulating junk basket is a fishing tool which uses the drilling fluid partly reverse in the bottom holeto latch small junk in the basket.It is used for fishing all types of small junk.objects in well bores. such as bit cines cutting blades and hand tools etc

Description
Inquiry

Specification

Model	Body OD (mm)	Mill shoe OD (mm)	Max.Fish Size (mm)	Steel Ball OD (mm)	Hole Size (mm)	Conn. (mm)
LL114	114	120	80	32	117.5-127	2-7/8REG
LL121	121	127	80	32	130-139.7	3-1/2REG
LL165	165	171	124	40	212.7-241.3	4-1/2REG
LL286	286	291	220	48	298.5-311.2	6-5/8REG
LL381	381	400	315	60	406.4-444.5	7-5/8REG
