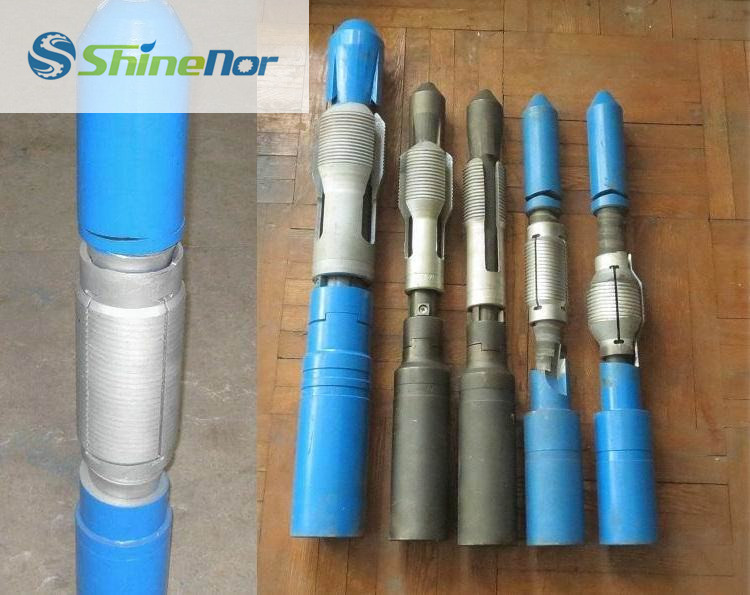

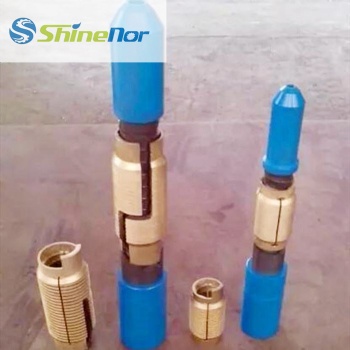

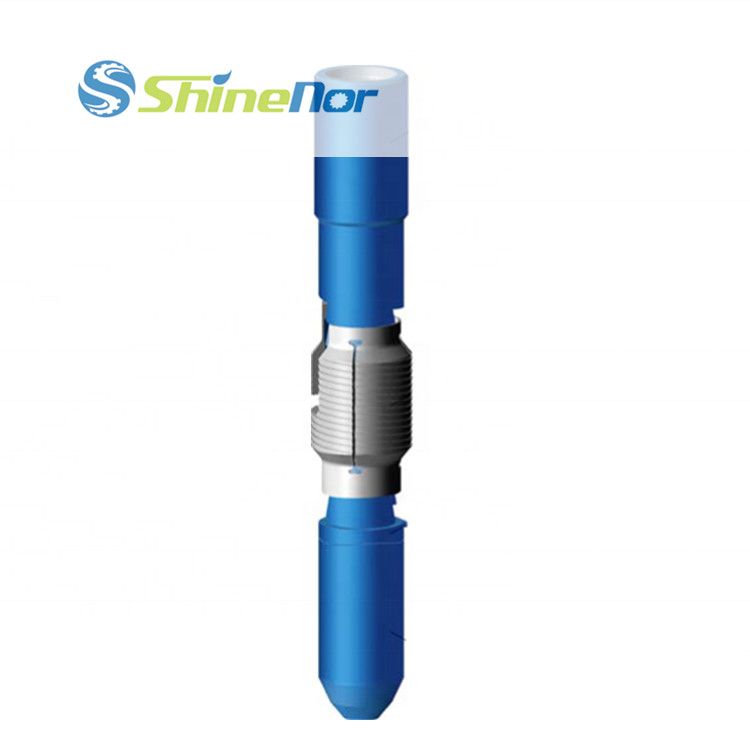

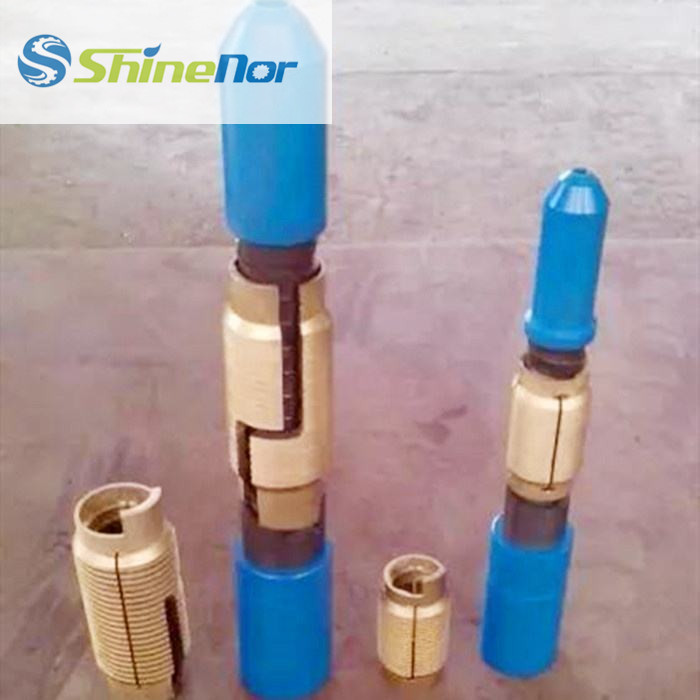

Releasing Spears

API Oilfield fishing tool Releasing Spear for oil and gas well repairing

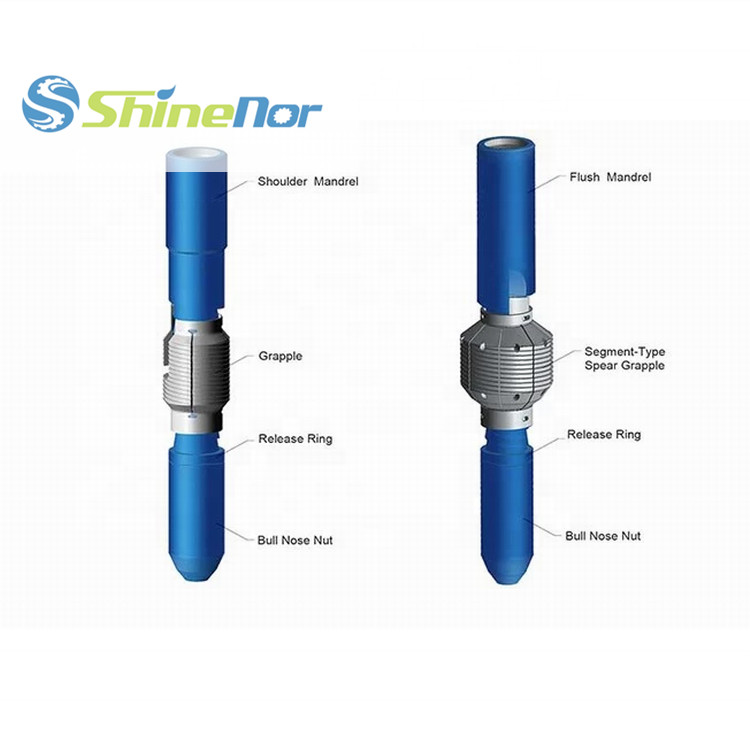

LM-T releasing spear is one of fishing tools to fishing internally.Mainly used to catch drill pipe,casing,tubing and other tubulous junks during oil and gas field of well repairing.It can be used with other tools such as casing cutter,jars.If the fish is struck,releasing the spear and lifting the drilling tools.

Description
Inquiry

Specification

Model	Mandrel OD mm	Fish ID mm	Conn.
LM-T80	80	38.1-79.38	NC23
LM-T89	89	47.4-66	NC26
LM-T105	105	63.5-79.38	NC31
LM-T105	105	79.38-104.78	2-3/8REG
LM-T114	114	63-66	3-1/2REG
LM-T121	121	54-102	NC38
LM-T127	127	133.35-180.98	NC38
LM-T159	159	171.8	NC46
LM-T168	168	86-170	NC50
LM-T203	203	230.2	6-5/8REG
LM-T209	209.6	216.8-224.4	6-5/8REG
LM-T209	209.6	315.3-323.0	6-5/8REG
