Float Valve & Float Valve Subs

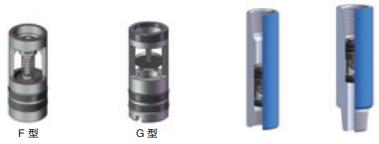

Float valve is one of necessary tool for oil drilling,it consists of float valve sub and float valve.The main function are to prevent drill cuttings come into mud when connecting each joint and the bit bore block caused by back flow of silt.When the well blowout or kick,the valve cover of float valve turn off the bore automatically.it will prevent well blowout accident.The working pressure of float valve is supposed to be 5000psi or 10000psi

Float Valve Subs Specification

Model

OD mm(inch)

ID mm(inch)

Conn.

Float Valve Type

FZF83

82.6(31/4)

31.8(1 1/4)

NC23B×2 3/8REG B

1R

FZF105

104.8(4 1/8)

31.8(1 1/4)

NC31 Bx2 7/8REG B

1F-2R

FZF127

127(5)

50.8(2)

3 1/2REG Bx NC38 B

2F-3R

FZF178

178(7)

71.4(2 13/16)

4 1/2REG Bx NC50 B

4R

FZF165

165(6 1/2)

71.4(2 13/16)

NC50(BxP)

5R

FZF203

203(8)

71.4(2 13/16)

6 5/8REG B x 6 5/8REG B

5F-6R

FZF229FZF241

229(9)/241(9 1/2)

76.2(3)

7 5/8REG Bx7 5/8REG B

5F-6R

Float Valve Specification

Model



OD

mm(inch)

OAL

mm(inch)



ID.mm(inch)

Box Conn.

Other Conn.





Conn.

Bore Depth mm(inch)

Conn.

Bore Depth

mm(inch)

1R

42.1(1 21/32)

149.2(5 7/8)

42.9(1 11/16))

2 3/8REG

231.8(9 1/8)

NC23

231.8(9 1/8)

1F-2R

48.42(1 29/32

158.8(6 1/4)

49.21(1 15/16)

2 7/8REG

254(10)

NC26

241.3(9 1/2)

2F-3R

61.1(2 13/32)

165.1(6 1/2)

61.9(2 7/16)

3 1/2REG

266.7(10 1/2)

NC31

260.35(10 1/4)

3F

71.44(2 13/16)

254(10)

72.23(2 27/32)



31/2FH

355.6(14)

3 1/2F

79.4(3 1/8)

254(10)

80.2(3 5/32)



NC38

 362 (14  1/4)

4R

88.1(3 15/32)

211.1(8 5/16)

88.9(3 1/2)

4 1/2REG

325.4(12 13/16)

NC44

331.8(13 1/16)

4F

92.87(3 21/32)

304.8(12)

93.66(3 11/16)



NC46

425.4(16 3/4)

5R

98.4(3 7/8)

247.7(9 3/4)

99.2(3 29/32)

5 1/2REG

374.7(14 3/4)

NC50

368.3(14 1/2)

5F-6R

121.4(4 25/32)

298.5(11 3/4)

122.2(4 13/16)

7 5/8REG

438.2(17 1/4)

51/2FH

431.8(17)
