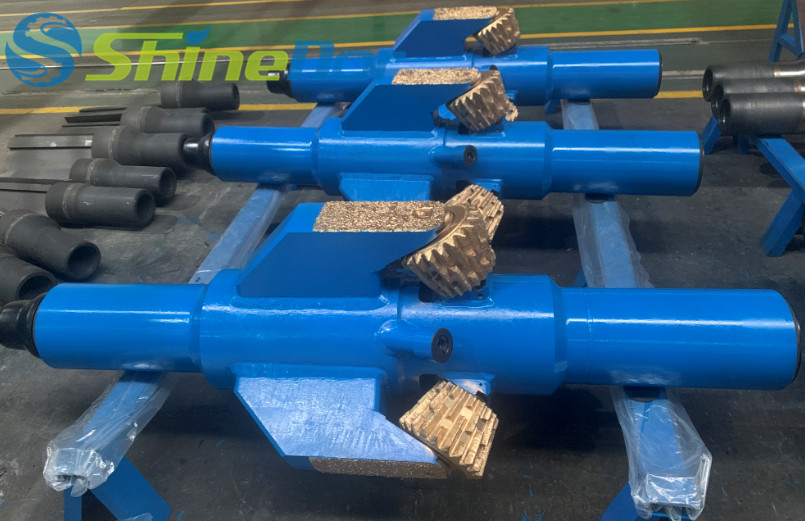

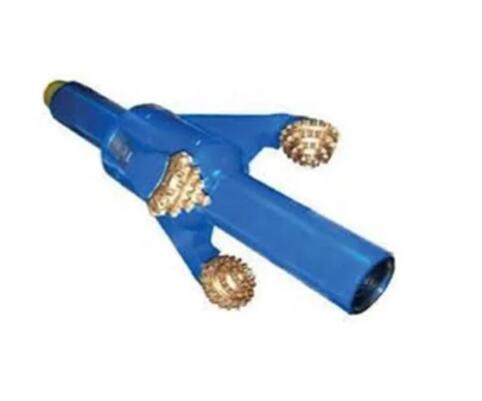

Fixed Diameter Hole Opener with cutter Type SM, MH, XH

Fixed Diameter Hole Opener is used for enlarging the surface hole which drilled by cone bit in advance or connected above the cone bit.It applies to Onshore and offshore oilfield.

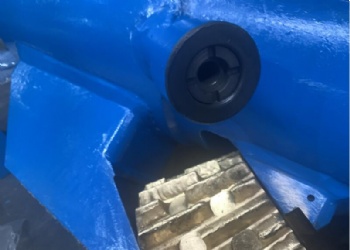

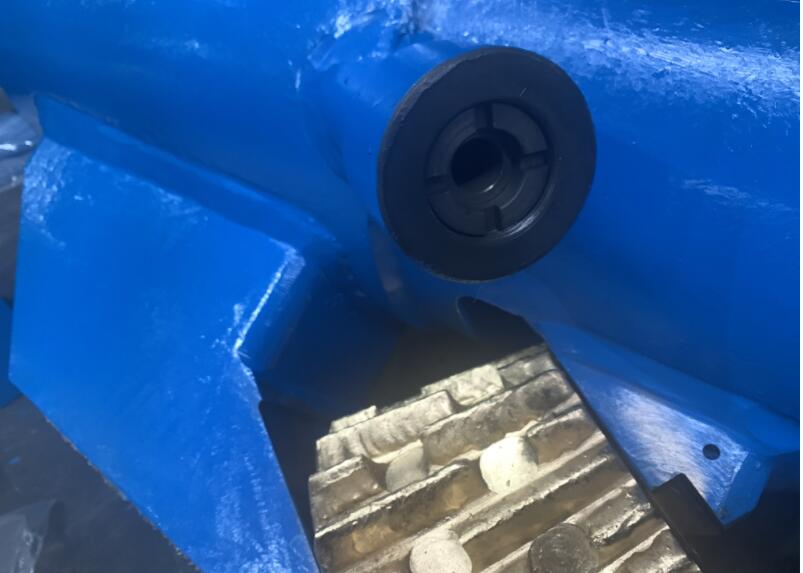

Fixed Diameter Hole Openers are designed for use in soft clays and shales to medium-hard shales and limestones. It is particularly effective in sticky formations where balling problems are encountered. Three jets with replaceable nozzles continuously clean the tool's cutting structure, clearing debris buildup and increasing penetration.

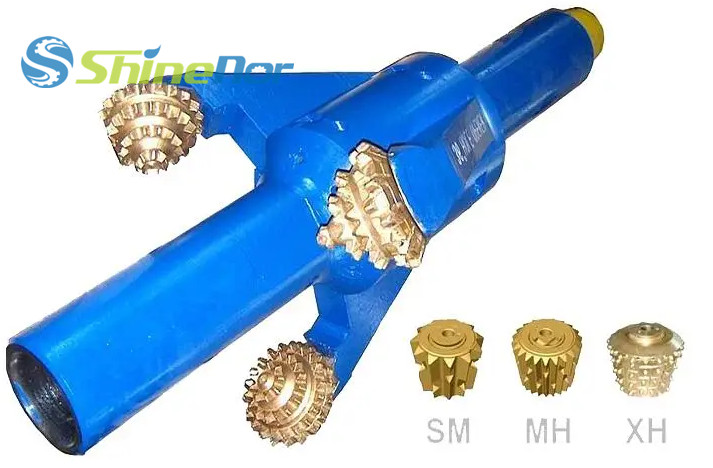

Cutters type:

“SM”:Soft to medium formation:"MH”:Medium to hard formation:"XH”:Hard formation

Fixed Diameter Hole Openers are used in the following conditions:

1.When drilling of a big hole is not possible because of rig capacity.

2.When a satisfied penetration rate is not obtained when drilling a big hole, it is used after drilling is completed with a smaller bit.

3.When the hole direction must be controlled.

When ordering please specify:

●Hole size;

●Pilot hole size;

●Top and bottom connections;

●Fishing neck and bottom neck O.D and length;

●Type of cutters.

Specification

Hole open diameter

Qty of cutters



Min.

Pilot hole

Fishing neck diameter

I.D.

Top

Connection

(Pin)

Bottom

connection

(Box)

Overall

Length



12 1/4”

3

8 1/2

8”

1 1/2”

6 5/8REG

6 5/8REG

55”

16”

3

10”

9 1/2”

2 1/4”

7 5/8REG

6 5/8REG

59”

17 1/2”

3

10”

9 1/2”

2 1/4”

7 5/8REG

6 5/8REG

59”

22”

3

12 3/4”

9 1/2”

2 1/3”

7 5/8REG

6 5/8REG

69”

23”

3

12 3/4”

8”

3”

7 5/8REG

6 5/8REG

69”

24”

3

14”

10”

3”

7 5/8REG

7 5/8REG

69”

26”

3

17 1/2”

10”

3 1/2”

7 5/8REG

7 5/8REG

69”

36”

4

26”

10”

3”

7 5/8REG

7 5/8REG

87”
