API Standard Oilfield Integral Spiral Blade Drilling Stabilizer/Near Bit and Drill String Type Stabilizer

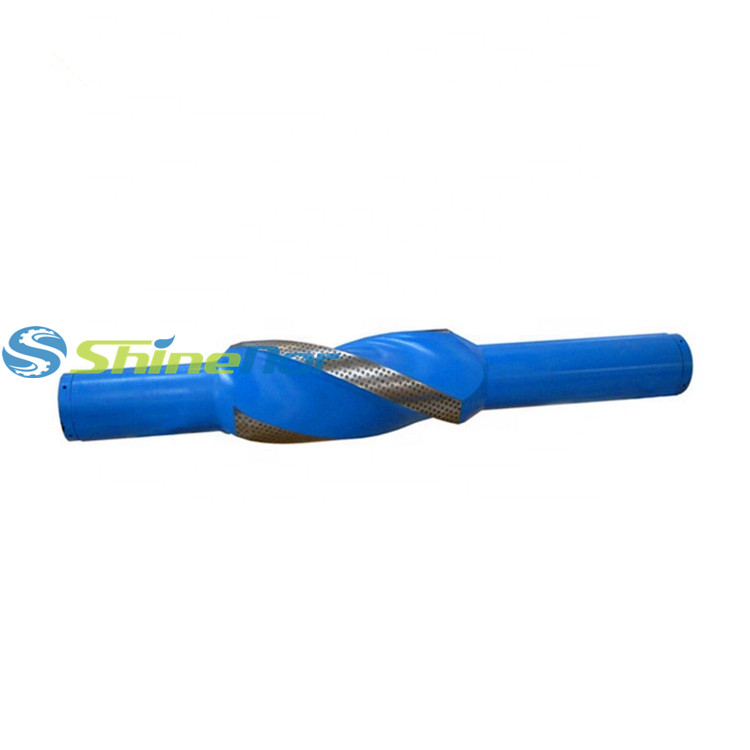

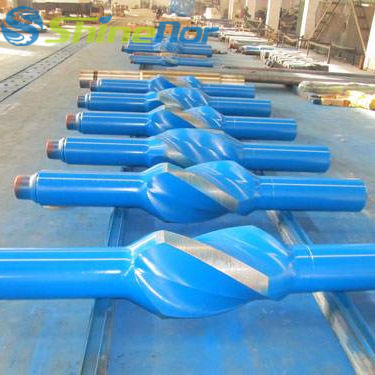

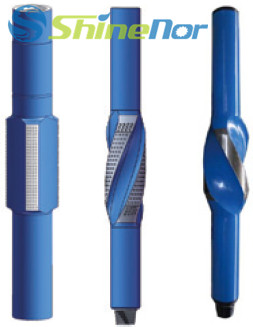

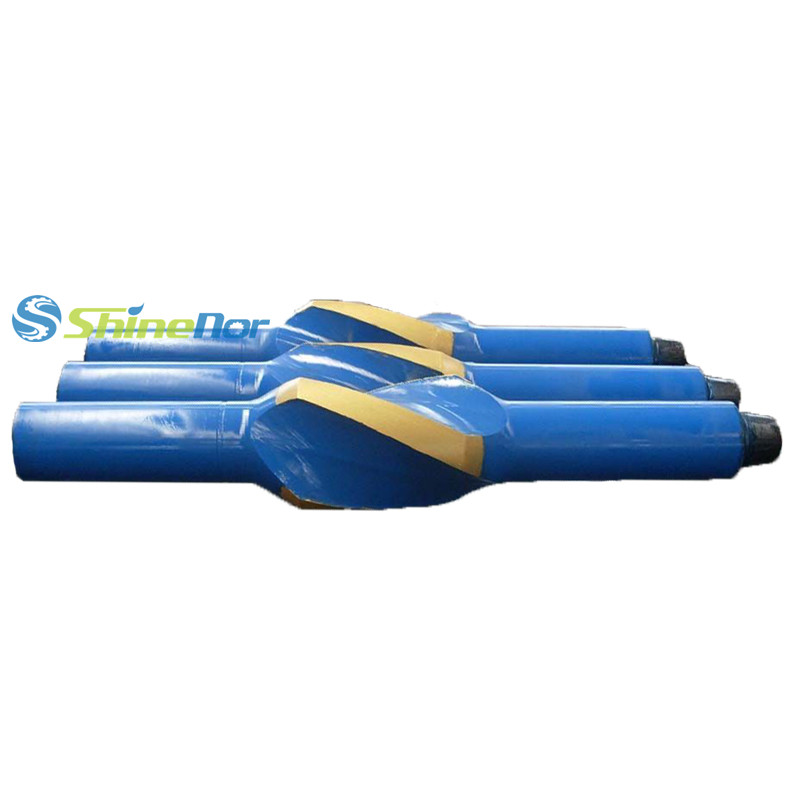

Integral blade stabilizer is an important tool in the drilling engineering to control the well deviation.It can stabilize the drilling tools in the drilling process of oil ,gas and geological exploration. It can increase the bit life,drilling speed and well bore quality. There are two kinds of integral stabilizers:spiral integral blade stabilizer and straight integral blade stabilizer.

Hard facing types of stabilizers

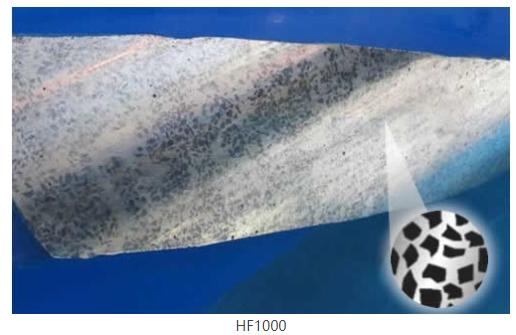

Hard facing 1000.jpg

Crushed tungsten carbide held in a nickel bronze matrix. The 3mm grain size ensures greater concentration of carbide which is ideal for soft formation drilling.

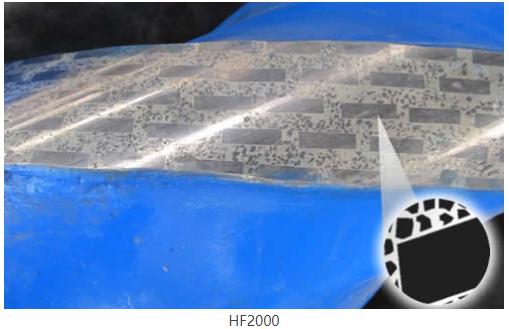

Hard facing 2000.jpg

Trapezoidal tungsten carbide inserts held in a sintered carbide nickel bronze matrix. This will give a greater depth of carbide coverage – ideal for high deviation drilling in abrasive formations.

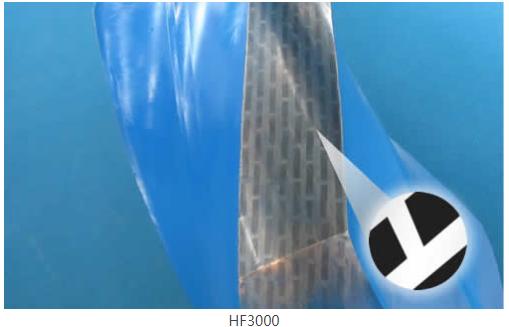

Hard facing 3000.jpg

Tungsten carbide inserts set in a powder spray deposit ideal for abrasive formations. 97% bonding guaranteed, certified by ultrasonic report. Recommended for non-magnetic stabilizers.

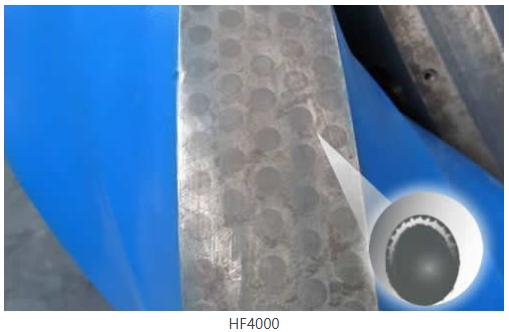

Hard facing 4000.jpg

Tungsten carbide inserts (button type). The inserts have been developed to allow cold insertion and maintain close fit. A greater concentration of inserts on the bottom third of the blade and leading edge will increase surface contact to reduce wear in highly abrasive formations.

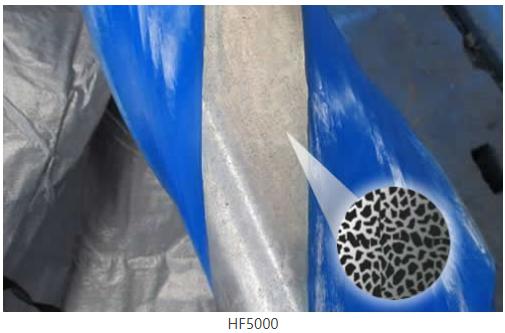

 Hard facing 5000.jpg

This oxy-acetylene process applies tough molten carbide particles of varying sizes held in a nickel chrome matrix which provides excellent bonding properties and greater surface wear characteristics are achieved. Surface hardness levels over 40 HRC. Ideal for GEO-THERMAL applications over 350°.

Specification



Model

Hole size OD mm(inch)

Fishing Neck OD mm(inch)

Upper Conn.

Lower Conn.

ID mm(inch)

Fishing Neck Length mm(inch)

Blade Axial Width mm(inch)

Blade Length mm(inch)

Remark

LX98

98.4(3 7/8)

79.4(3 1/8)

NC23

NC23

31.8(1 1/4)

240(9 29/64)

34(1 1/32)

240(9 29/64)

String

LX149

149.2(5 7/8)

120.7(4 3/4)

NC38

NC38

50.8(2)

600(23 5/8)

50(1 31/32)

350(13 25/32)

String

LX149-NB

3 1/2REG

Near Bit

LX216

215.9(8 1/2)

165.1(6 1/2)

NC50

NC50

57.2(2 1/4)

600(23 5/8)

60(2 3/8)

406(16)

String

LX216-NB

4 1/2REG

Near Bit

LX311

311.15(12 1/4)

203.2(8)

6 5/8REG

6 5/8REG

71.4

(2 13/16)

700(27 9/16)

75(2 61/64)

406(16)

String

LX311-NB

Near Bit

LX444.5

444.5(17 1/2)

228.6(9)

7 5/8REG

7 5/8REG

76.2(3)

700(27 9/16)

121(4 3/4)

460(18 7/64)

String

LX444.5-NB

Near Bit

LX660

660.4(26)

241.3(9 1/2)

7 5/8REG

7 5/8REG

76.2(3)

762(30)

121(4 3/4)

508(20)

String

KX660-NB

Near Bit

LX914

914.4(36)

241.3(9 1/2)

7 5/8REG

7 5/8REG

76.2(3)

889(35)

121(4 3/4)

610(24)

String

LX914-NB

Near Bit
