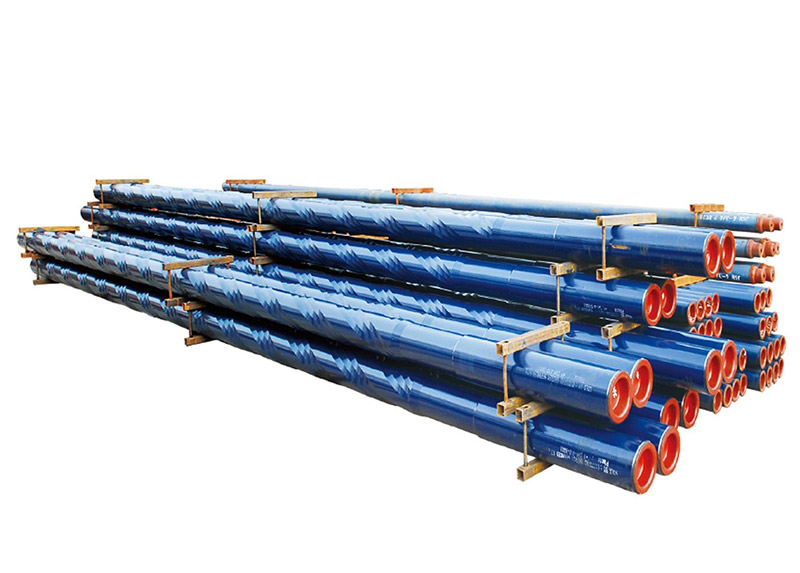

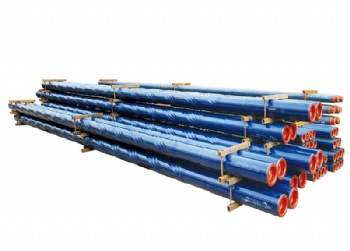

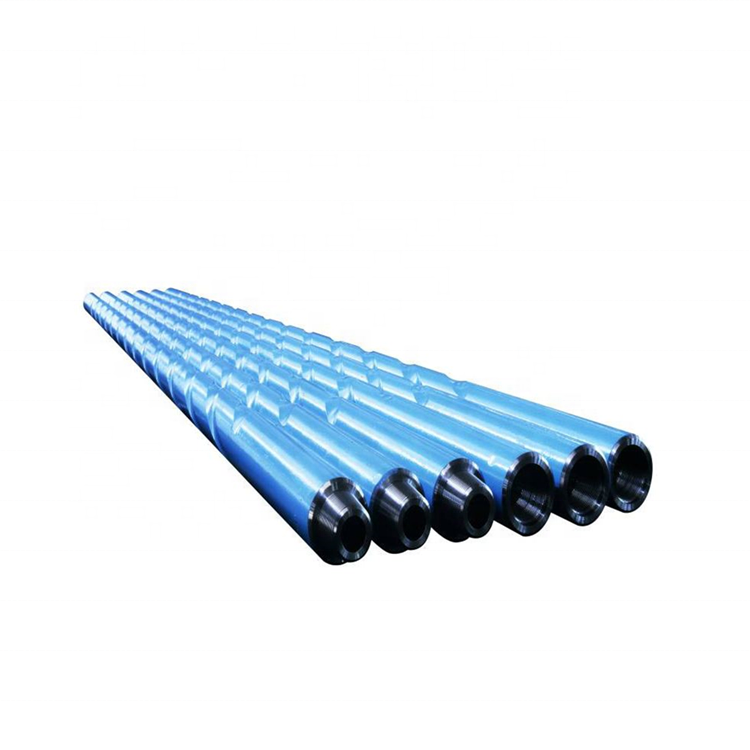

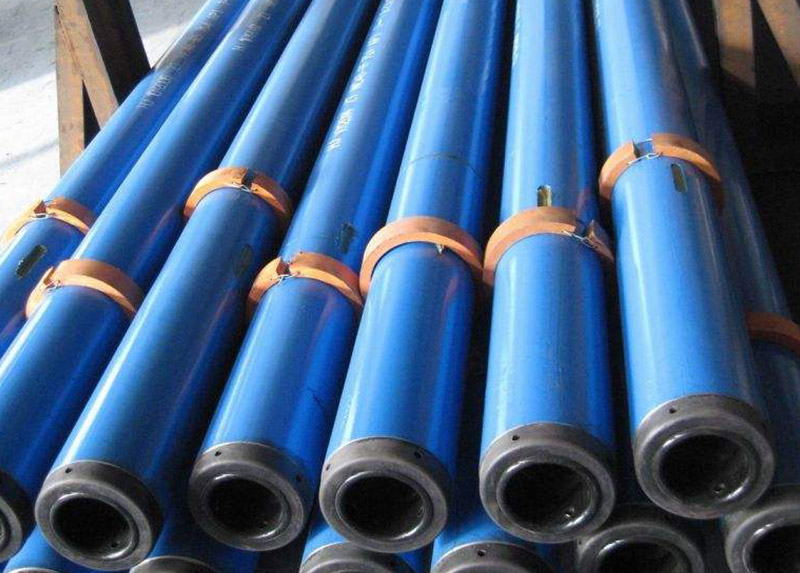

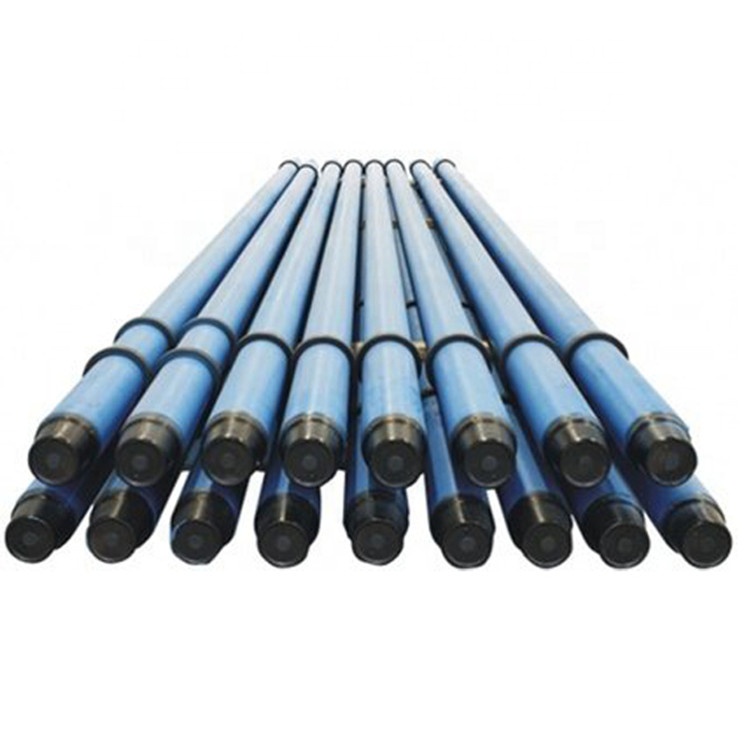

Standard and spiral drill collar

Drill Collar is the basic component in the BHA which provides weight on the bit for drilling and keeps the drill string in tension.

ShineNor Drill Collar is manufactured from 4145H modified quenched and tempered steel,strict metallurgical specifications are followed to insure that full length heat treating produces a consistent maximum depth of hardness.

Specification

Number and Connection Table

Outside Diameter

Inside Diameter

Length mm

Bevel Diunstor

mm

Bending Strongth Ratio

mm       in

mm      in

NC23-31

79.4       3 1/8

31.8      1 1/2

9150

76.2

2.57:1

NC26-35(2 3/8 1F)

88.9       3 1/2

38.1      1 1/2

9150

82.9

2.42:1

NC31-41(27/8 IF)

104.8      4 1/8

50.8       2

9150

100.4

2.43:1

NC35-47

120.6      4 3/4

50.8       2

9150

114.7

2.58:1

NC38-50(31/2IF)

127        5

57.2      2 1/4

9150

121

2.38:1

NC44-60

152.4      6

57.2      2 1/4

9150 or 9450

144.5

2.49:1

NC44-60

152.4       6

71.4      2 13/16

9150 or 9450

144.5

2.84:1

NC44-62

158.8       6 1/4

57.2       2 1/4

9150 or 9450

149.2

2.91:1

NC46-62(4IF)

158.8       6 1/2

71.4      2 13/16

9150 or 9450

150

2.63:1

NC46-65(4IF)

165.1       6 1/2

57.2       2 1/4

9150 or 9450

154.8

2.76:1

NC46-65(4IF)

165.1       6 1/2

71.4      2 13/16

9150 or 9450

154.8

3.05:1

NC46-67(4IF)

171.4       6 3/4

57.2      2 1/4

9150 or 9450

159.5

3.18:1

NC50-67(41/2IF)

171.4       6 3/4

71.4      2 13/16

9150 or 9450

159.5

2.37:1

NC50-70(4 1/2IF)

177.8       7

57.2      2 1/4

9150 or 9450

164.7

2.54:1

NC50-70(4 1/2IF)

177.8       7

71.4      2 13/16

9150 or 9450

164.7

2.73:1

NC50-72(4 1/21F)

184.2       7 1/4

71.4      2 13/16

9150 or 9450

169.5

3.12:1

NC56-77

196.8       7 3/4

71.4      2 13/16

9150 or 9450

185.3

2.70:1

NC56-80

203.2       8

71.4      2 13/16

9150 or 9450

190.1

3.02:1

6 5/8REG

209.6       8 1/4

71.4      2 13/16

9150 or 9450

195.7

2.93:1

NC61-90

228.6       9

71.4      2 13/16

9150 or 9450

212.7

3.17:1

7 5/8 REG

241.3       9 1/2

76.2      3

9150 or 9450

223.8

2.81:1

NC70-97

247.6       9 3/4

76.2      3

9150 or 9450

232.6

2.57:1

NC70-100

254        10

76.2      3

9150 or 9450

237.3

2.81:1

85/8 REG

279.4       11

76.2      3

9150 or 9450

286.7

2.84:1

Slips and elevator grooves can be produced upon the customers' requirement.
