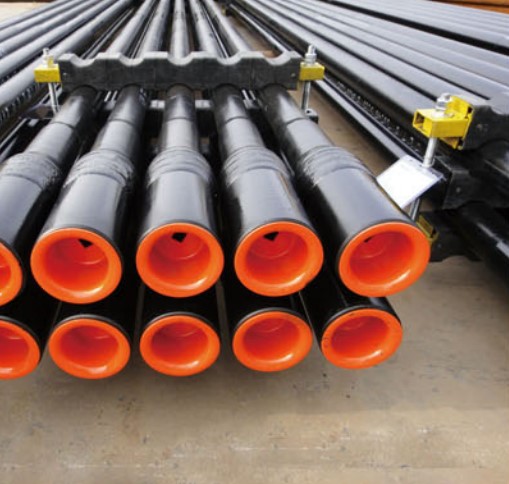

Standard Drill pipe

ShineNor provides a complete line of drill string products including a full range of jointed drill pipe in nominal sizes from 2-3/8 “ to 6-5/8” and in a wide range of wall thicknesses. Our drill pipe with a strict quality control regimen from initial materials selection to final inspection. We ensure that each joint of drill pipe meets your needs for durability and performance.

Specification

Size

Weight Designation

Plain-End Weight

Wpe

Outside Diameter

Wall thickness

Grade

Upset Ends,for weld-on tool joints

Lb/ft

Kg/m

in

mm

in

mm

2 3/8

6.65

6.27

9.33

2.375

60.3

0.28

7.11

E.X.G.S

Ext.Upset

2 7/8

10.4

9.72

14.47

2.875

73

0.362

9.19

E.X.G.S

Int.Upset or Ext Upset

3 1/2

9.5

8.81

13.12

3.5

88.9

0.254

6.45

E

Int.Upset or Ext Upset

3 1/2

13.3

12.32

18.34

3.5

88.9

0.368

9.35

E.X.G.S

Int.Upset or Ext Upset

3 1/2

15.5

14.64

21.79

3.5

88.9

0.449

11.4

E

Int.Upset or Ext Upset

3 1/2

15.5

14.64

21.79

3.5

88.9

0.449

11.4

X.G.S

Ext.Upset or Int -Ext.Upse

4

14

12.95

19.27

4

101.6

0.33

8.38

E.X.G.S

Int.Upset or Ext Upset

4 1/2

13.75

12.2

18.23

4.5

114.3

0.271

6.88

E

Int.Upset or Ext Upset

4 1/2

16.6

15

22.32

4.5

114.3

0.337

8.56

E.X.G.S

Ext.Upset or Int -Ext.Upse

4 1/2

20

18.71

27.84

4.5

114.3

0.43

10.92

E.X.G.S

Ext.Upset or Int -Ext.Upse

5

16.25

14.88

22.16

5

127

0.296

7.52

X.G.S

Int.Upset

5

19.5

17.95

26.7

5

127

0.362

9.19

E

Int -Ext.Upset

5

19.5

17.95

26.7

5

127

0.362

9.19

X.G.S

Ext.Upset or Int -Ext.Upse

5

25.6

24.05

35.8

5

127

0.5

12.7

E

Int -Ext.Upse

5

25.6

24.05

35.8

5

127

0.5

12.7

X.G.S

Ext.Upset or Int -Ext.Upse

5 1/2

21.9

19.83

29.52

5.5

139.7

0.361

9.17

E.X.G.S

Int -Ext.Upset

5 1/2

24.7

22.56

33.57

5.5

139.7

0.415

10.54

E.X.G.S

Int -Ext.Upset

6 5/8

25.2

22.21

33.04

6.625

168.3

0.33

8.38

E.X.G.S

Int -Ext.Upset

6 5/8

27.72

24.24

36.06

6.625

168.3

0.362

9.19

E.X.G.S

Int -Ext.Upset
