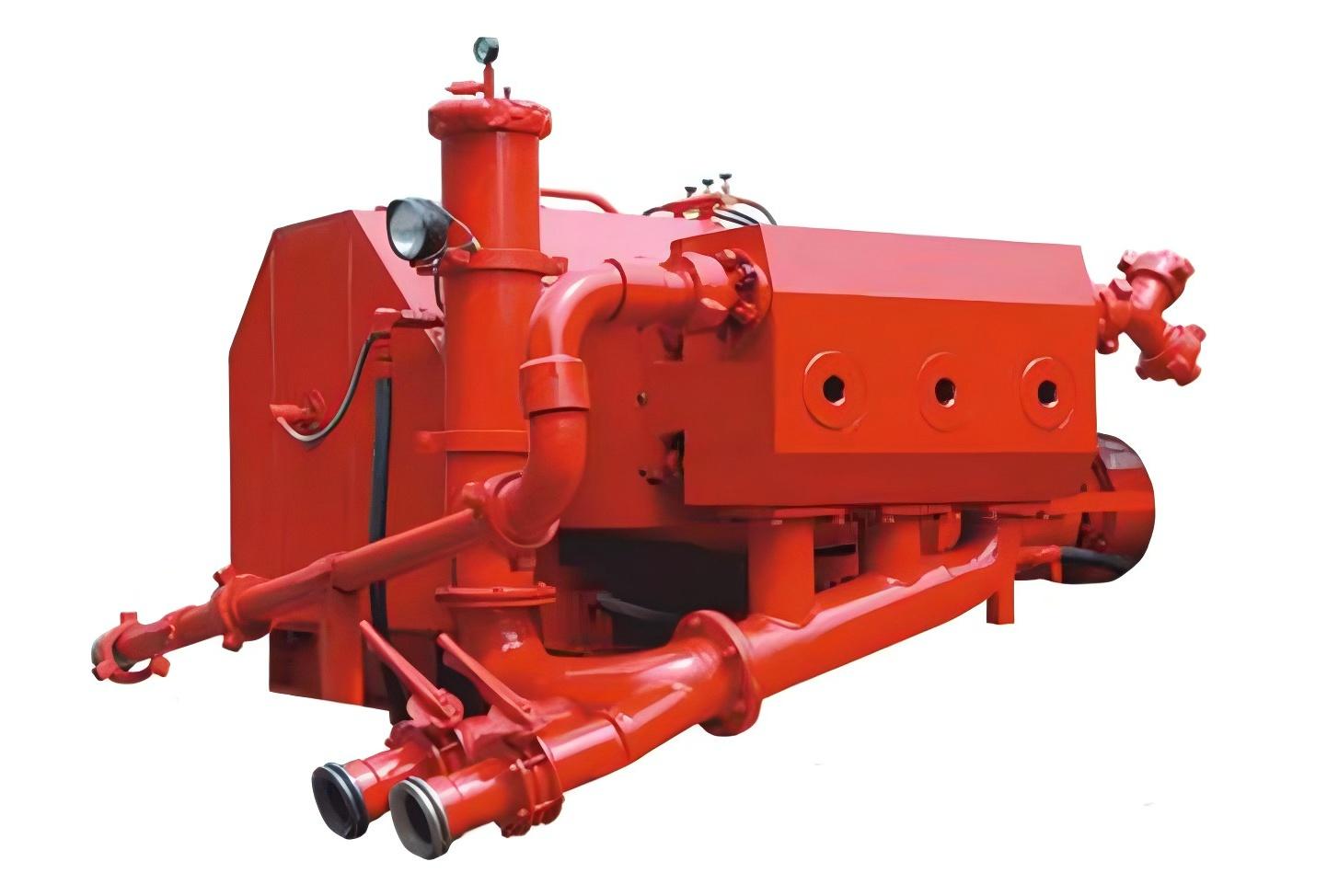

SN-STP2000 three-cylinder plunger pump

SN-STP2000 three-cylinder plunger pump is mainly used in fracturing, acidizing, cementing and sand control operations. It has the characteristics of large output power, high pressure and large displacement; the hydraulic end can choose a variety of plungers to meet the user's requirements for different pressures and displacements; the independent packing box is convenient to disassemble and easy to replace; the double helical gear vice transmission, the equipment is evenly stressed to improve the smooth operation of the large pump.

Description
Inquiry

Main Technical Parameters

Product Model	SN-STP2000
Max. brake power kW (BHP)	1490（2000）
Max. load of connecting rod kN（lbf)	1020（229500）
Stroke mm	203.2（8″）
Transmission ratio	6.353：1
Length×Width×Height	2280×1518×1124（89.76″×59.76″×44.25″）
Weight kg（lbs）	5610（12360）
