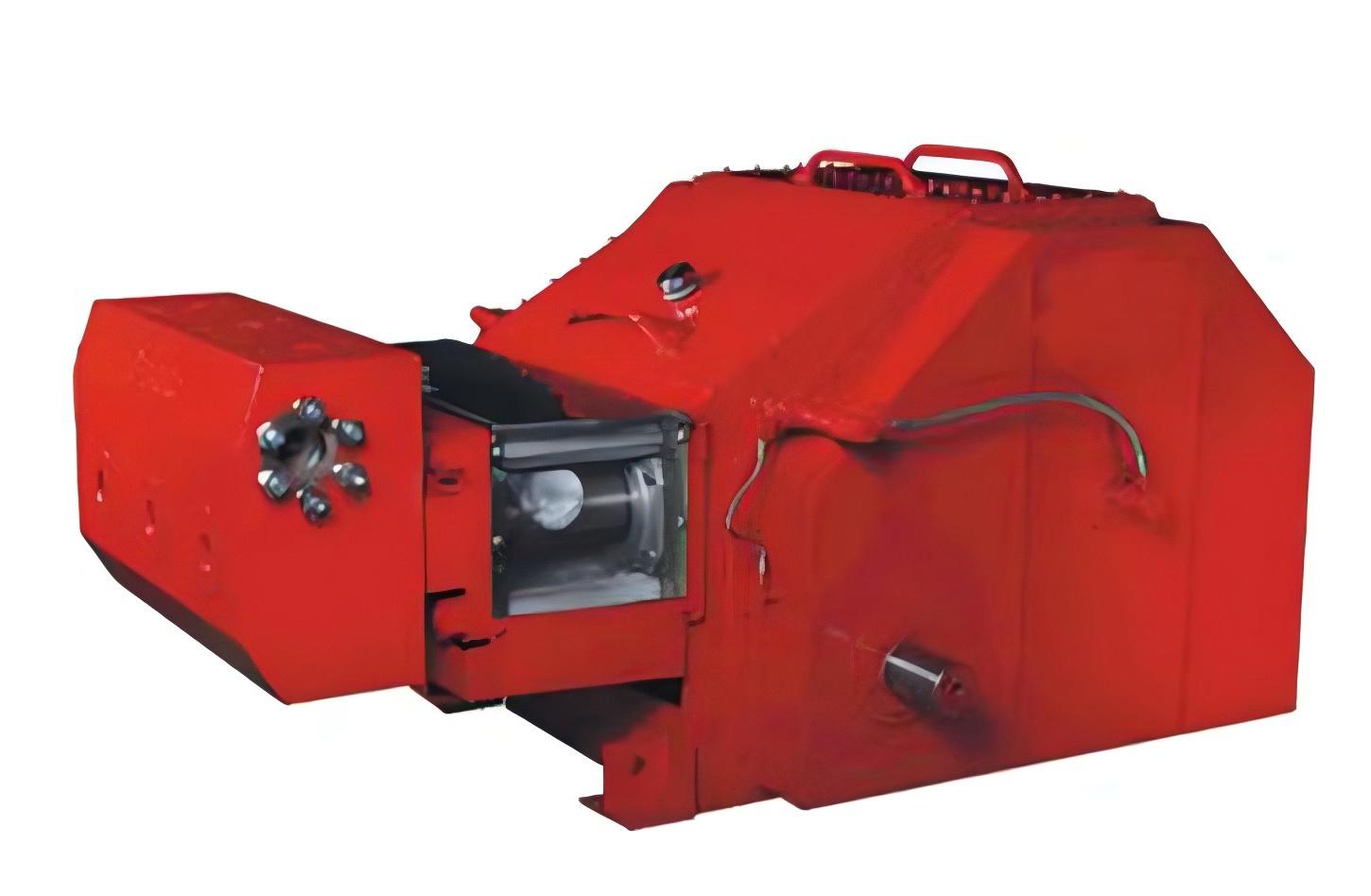

SN-STP1800 three-cylinder plunger pump

SN-STP1800 three-cylinder plunger pump is mainly used in fracturing, acidizing, cementing and sand control operations. It has the characteristics of large output power, high pressure and large displacement; the hydraulic end can choose a variety of plungers to meet the user's requirements for different pressures and displacements; the independent packing box is convenient to disassemble and easy to replace; the use of double helical gear vice transmission, the equipment is evenly stressed to improve the smooth operation of large pumps

Main Technical and Performance Parameters



Plunger Pump Model.

SN-STP1800

Max. Braking Power

1342kW(1800 hp)

Maximum Load of Connecting Rod.

1000kN(225000 lbf)

Stroke.

203.2mm(8")

Max. Stroke.

330rpm

Transmission Ratio.

6.353:1

Dimension.

2280×1518×1126 mm

Length X Width X Height

(89.76"×59.76"×44.25")

Weight.

5398kg(12360 lbs)



Main Performance Parameters Table



Operating Parameters

                                            Pump Stroke
                                              r/min


75

115

200

300

330

Plunger Diameter

Displacement

Pressure

Displacement

Pressure

Displacement

Pressure

Displacement

Pressure

Displacement

Pressure

in(mm)

L/min(gpm)

MPa(psi)

L/min(gpm)

MPa(psi)

L/min(gpm)

MPa(psi)

L/min(gpm)

MPa(psi)

L/min(gpm)

MPa(psi)

4"(101.6)

371(98)

123.5(17915)

568(150)

123.5(17915)

988(261)

73.6(10680)

1483(392)

49(7120)

1631(431)

44.6(6475)

4-1/2"(114.3)

469(124)

97.6(14155)

719(190)

97.6(14155)

1251(330)

58(8415)

1876(496)

38.7(5610)

2064(545)

35.1(5095)

5"(127)

579(153)

79(11465)

889(235)

79(11465)

1544(408)

47(6805)

2317(612)

31.3(4540)

2548(673)

28.4(4125)
