Applications:
●The polished rod is mainly used for connecting the pumping unit and rod string in the oil well.
●The regular grade D polished rod is not used for high corrosion environments.
●The end upsetting polished rod can be used combined with a sucker rod for usage.
●The corrosion-resistant polished rod is used for pumping crude oil in deep wells, large displacement wells, thickened oil well, and high corrosion wells.

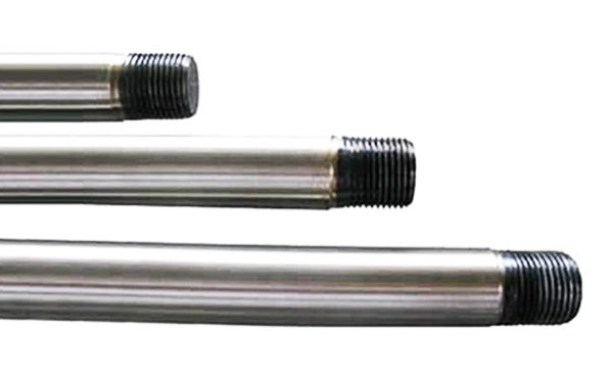

Regular Polished Rod Specification:
size (in) | 1-1/8'' | 1-1/8'' | 1-1/4'' | 1-1/2'' |
Size (mm) | 28.58 | 28.58 | 31.75 | 38.10 |
Pin Thread Nominal Diameter (in) | 15/16'' | 1-1/16'' | 1-3/16‘’ | 1-3/8'' |
Pin Thread Nominal Diameter (mm) | 23.83 | 27.00 | 30.18 | 34.93 |
Use with sucker rod size (in) | 5/8'' | 3/4'' | 7/8'' | 1'' |
Use with sucker rod size (mm) | 16 | 19 | 22 | 25 |
Standard Length (ft) | 8', 11', 16', 22', 24', 25', 26', 30', 36', 40' | |||
Standard Length (meter) | 2.4m; 3.4m; 4.9m; 6.7m; 7.3m; 7.9m; 9.14m; 10.97m; 12.0m. | |||
Other Spec. Or Lengths are available on special order |

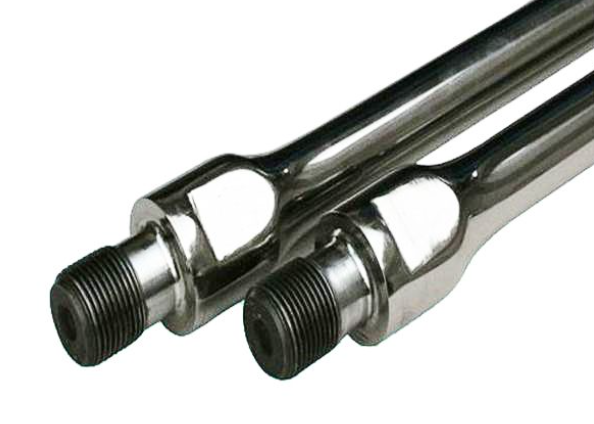

End Upsetting Polished Rod Specification
size (in) | 1'' | 1-1/8'' | 1-1/4'' | 1-1/2'' |
Size (mm) | 25.40 | 28.58 | 31.75 | 38.10 |
Regular End Pin Thread Diameter | 15/16'' (24mm) | 1-1/16'' (27mm) | 1-3/16‘’ (30mm) | 1-3/16'' (30mm) |
Upsetting End Pin Thread Diameter | 1-3/16'' (30mm) | 1-3/8'' (35mm) | 1-9/16'' (40mm) | 1-9/16'' (40mm) |
Use with sucker rod size | 5/8'' (22mm) | 1'' (25.4mm) | 1-1/8'' (29mm) | 1-1/8'' (29mm) |
Standard Length (ft) | 16', 22'. 24', 26', 30'. 36' | |||
Standard Length (meter) | 4877mm, 6707mm, 7315mm, 7925mm, 9144mm, 10973mm | |||
Other Spec. Or Lengths are available on special order |
