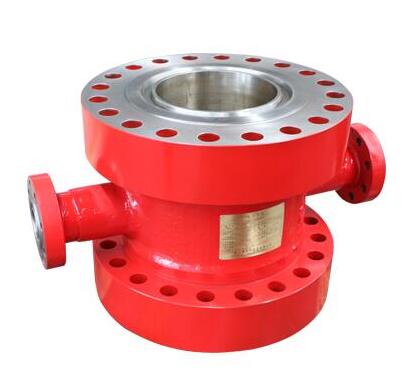

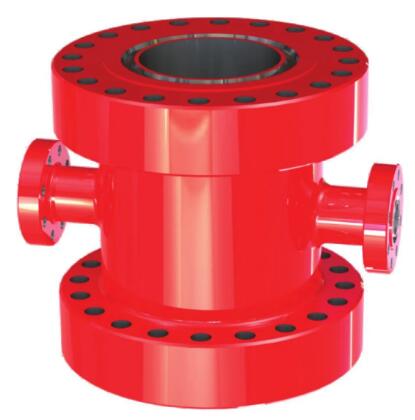

Drilling Spool

The drilling spool is suitable for use in high-pressure oil and gas wells during the drilling process. The spool side port is connected to corresponding valves and pipelines for blowout and throttling operations, and also serves as a connection between the blowout preventer and the wellhead. Installation and use are connected to the blowout preventer assembly, casing head, etc. Before installation, the steel ring groove and other parts should be cleaned. When tightening the connecting bolts between the spool and the blowout preventer, the force should be evenly applied.

Product Name

API 6A Oilfield Equipment   Drilling Spool

Nominal diameter

7 1/16"~30"

Working Pressure

2000 psi~20000 psi   (14Mpa~140Mpa)

Working Medium

crude oil, natural gas, mud

Temperature Ratings

-46~121ºC(LU)

Material Class

AA~HH

Product specification level

PSL1~PSL4

Performance level

PR1~PR2
