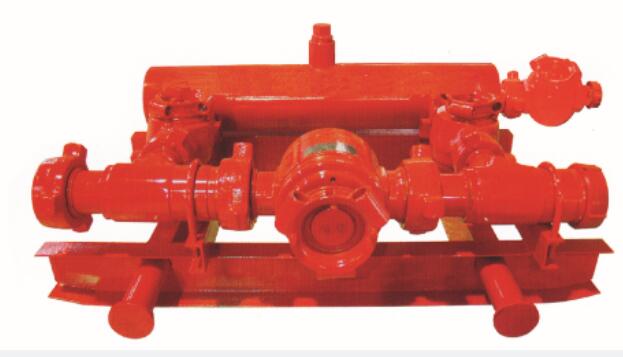

Wax Ball Manifold

Wax Ball Manifold: The equipment consists of 1 set of wax ball manifold pry, 1 set of pressure control manifold, 1 set of wax ball manifold, 20 70 meter high voltage pipelines, 2 "single flow valve, 3" plug valve, 2 "plug valve, seismic pressure gauge, movable elbow, wellhead flange, Y-shaped tee, T-shaped tee, transition joint, and other components. The valves and pressure components that make up the manifold are designed and manufactured in accordance with API Spec 6A "Specification for Wellhead Equipment and System Tree Equipment".

Specification


Main Pass   Diameter

70mm

Bypass Diameter

40/70mm

Working Pressure

70/105Mpa

Working   Temperature

-45ºC~121ºC

Connection

3“FIG1502   and 2" FIG1502 Union

Suitable   medium

Fracturing   Fluid, Fracturing Sand, CO2, N2
