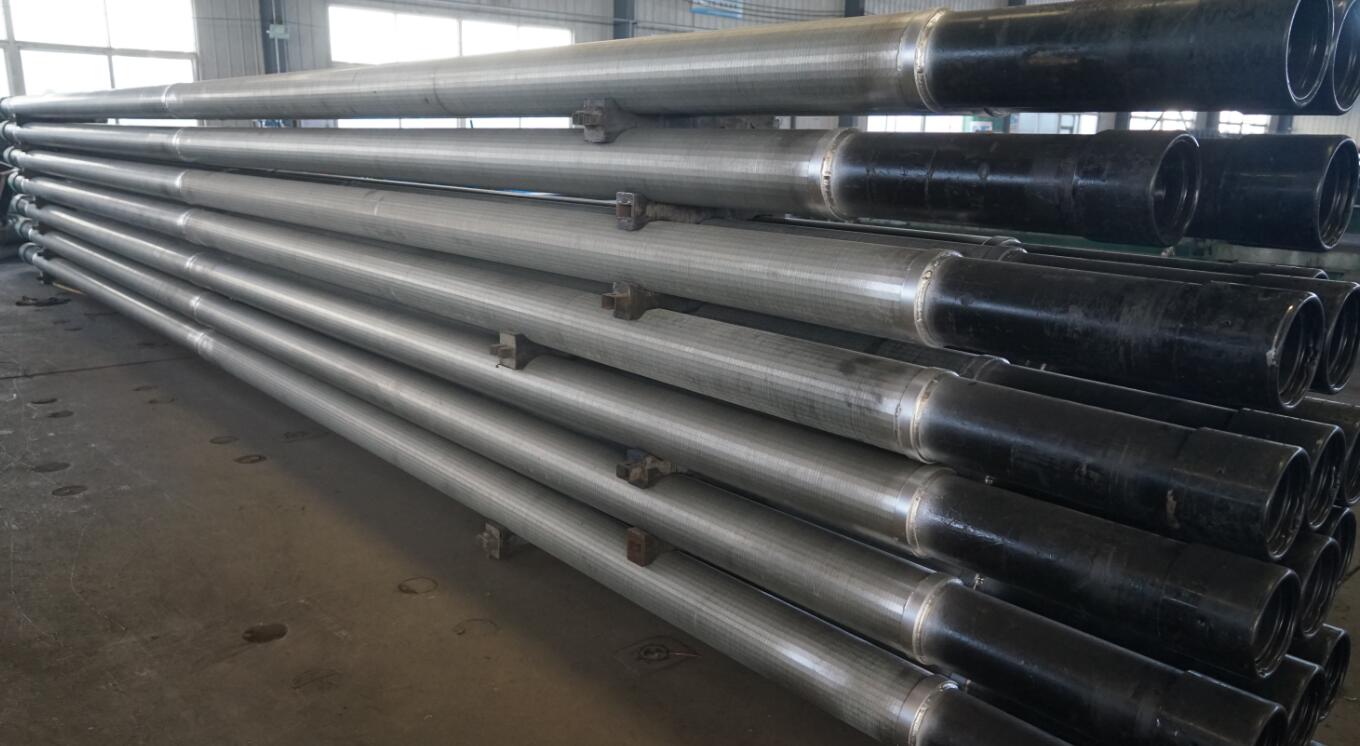

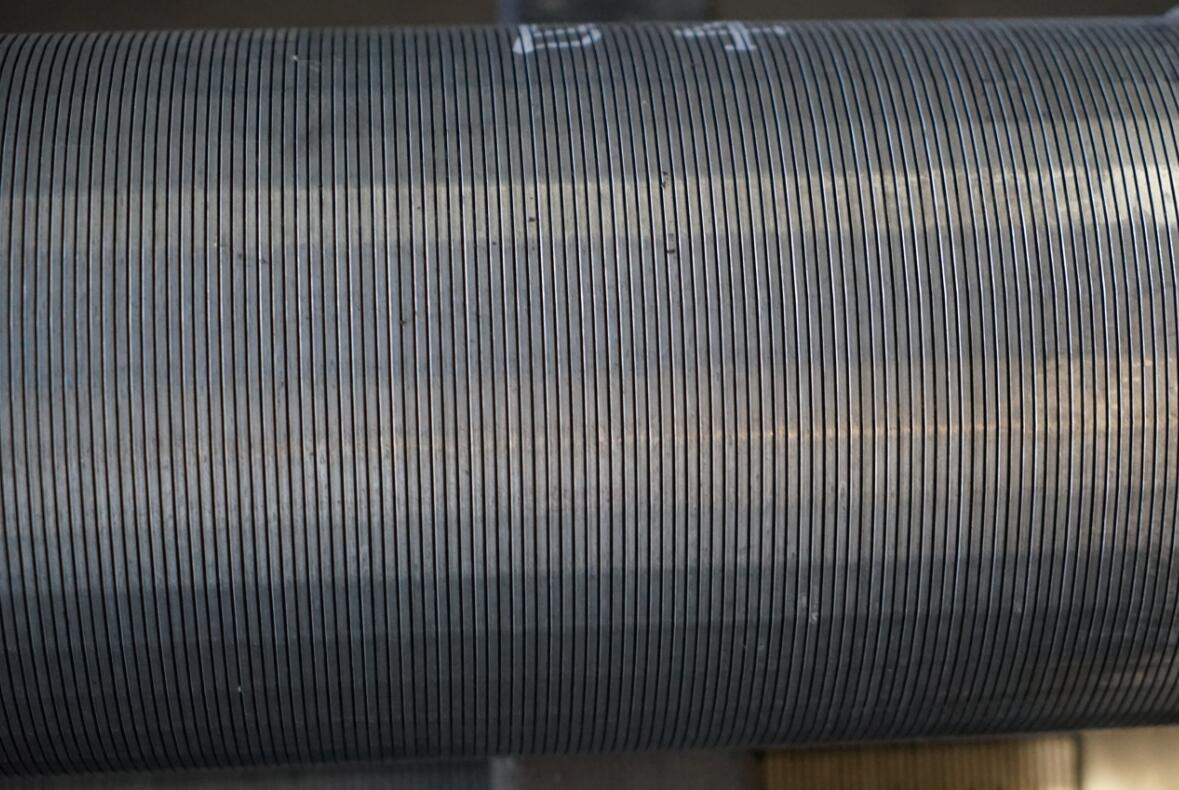

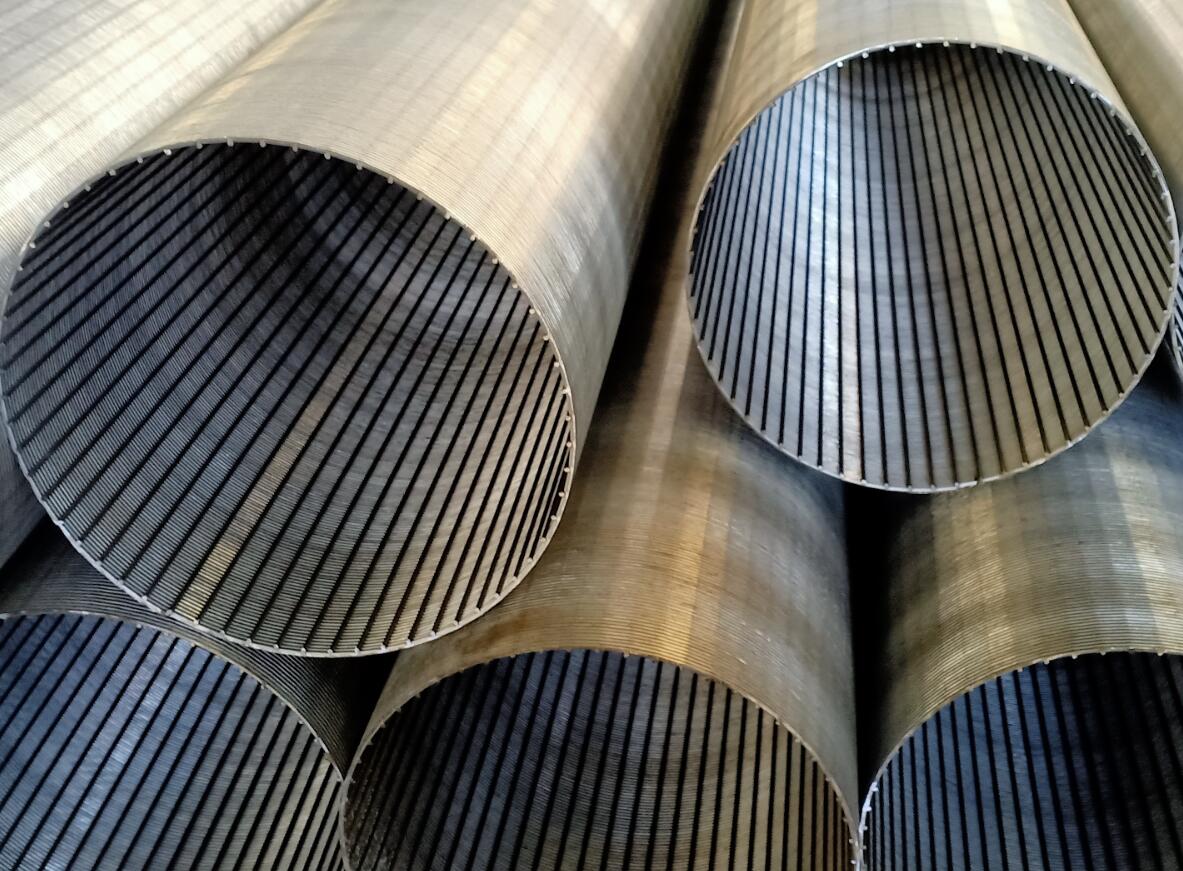

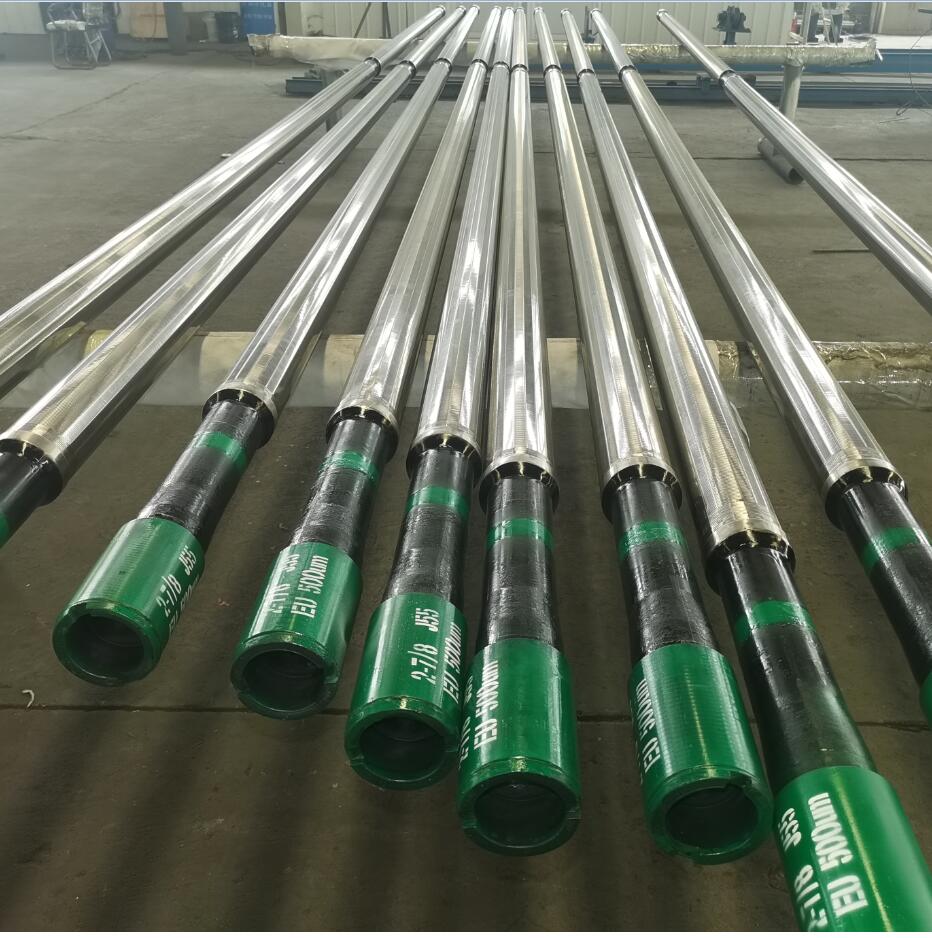

Wire Wrap Screen Pipe

NOTES

Wire and rod material:AISI304,AISI 304L,AISI316,AISL316L.

Base-pipe:APIJ55,N80,P110,C90,13Cr,or more.

 Open area up to 60%.

 Slot width:0.1-2.0mm.

Wire Wrapped Screens length(m):1.8,3.0,6.0,9.0,12.0 or more.

Specification:

Size (in)

Weight
lb/ft

Screen
lD mm

Screen
OD mm

Holes
OD mm

Holes
number
per ft

Rod
number
Piece

Weight
kg/m

2-3/8

4.6

50.6

78

9.5

48

24

11.3

2-7/8

6.4

62

91

9.5

60

26

14.4

3-1/2

9.2

76

107

9.5

72

28

19

4

9.5

90.1

119.5

12.7

84

32

20.3

4-1/2

11.6

101.6

132.5

12.7

96

34

25.1

5

15

112

145

12.7

108

38

29

5-1/2

17

124.3

158

12.7

120

44

32.6

6-5/8

24

150.4

186

12.7

132

48

43.6

7

26

159.4

196

12.7

144

54

47
