Slotted Pipe/Liner

FEATURES

Slotted liners are made from tubulars by saw-cutting slot configurations. Slot widths are often referred to in terms of gauge. Slot or screen gauge is simply the width of the opening in inches multiplied by 1000.

For instance a 12-gauge screen has openings of 0.012 in.

The slots can be straight or keystone shaped,as illustrated in following picture.The keystone slot is narrower on the outside surface of the pipe than on the inside.Slots formed in this way have an inverted"V"cross-sectional area and are less prone to plugging because any particle passing through the slot at the outside diameter (OD) of the pipe will continue to flow through,rather than lodging within the slot.

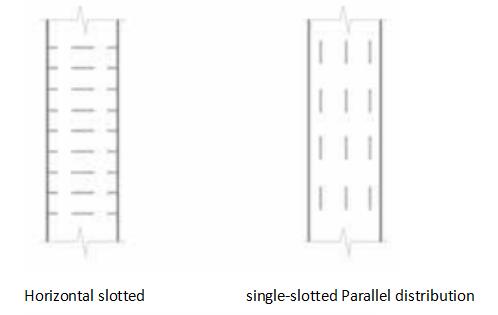

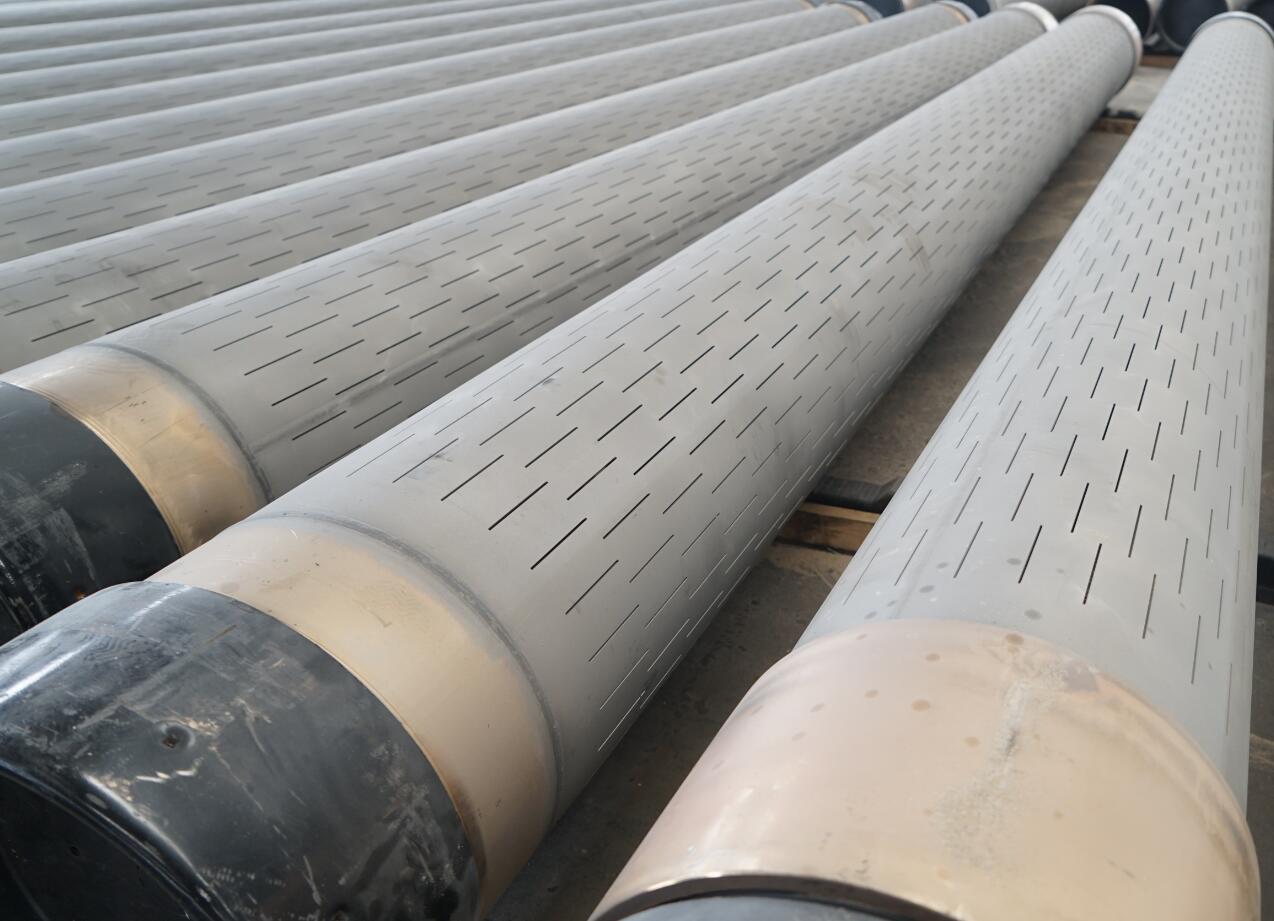

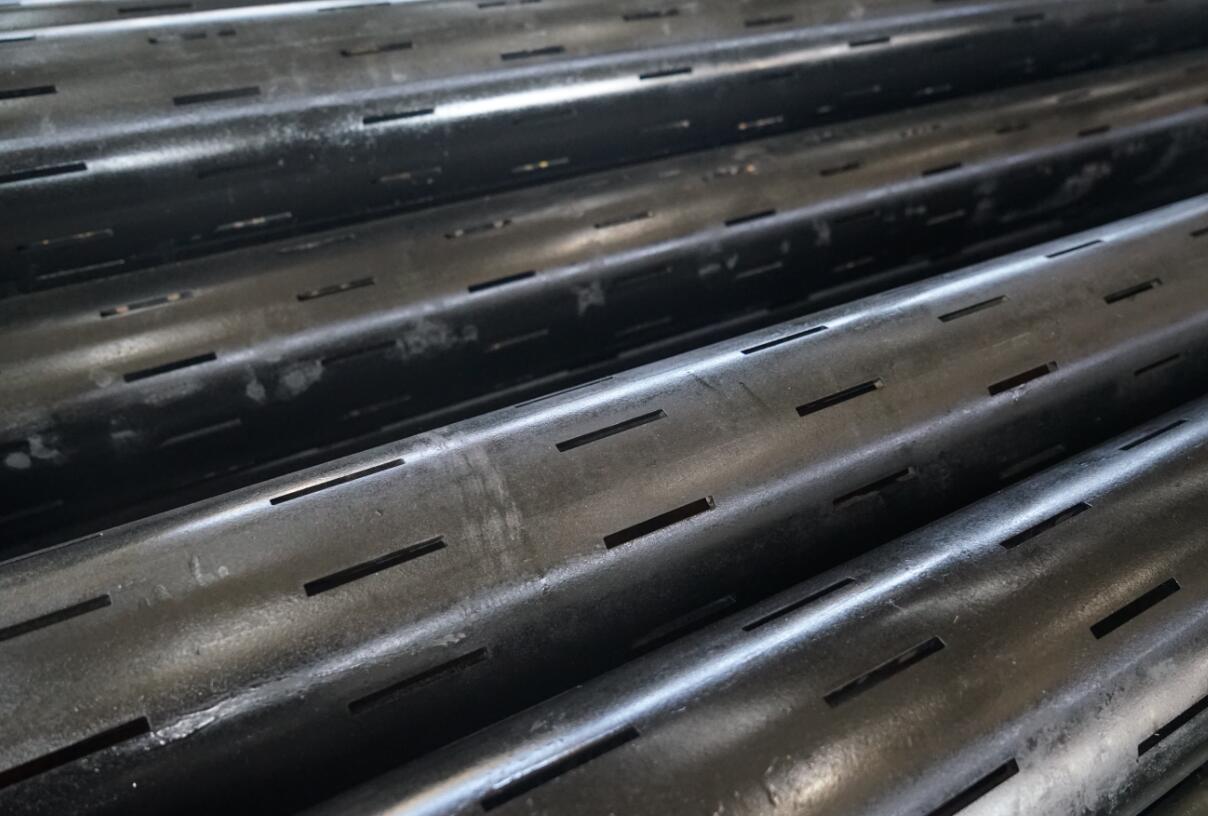

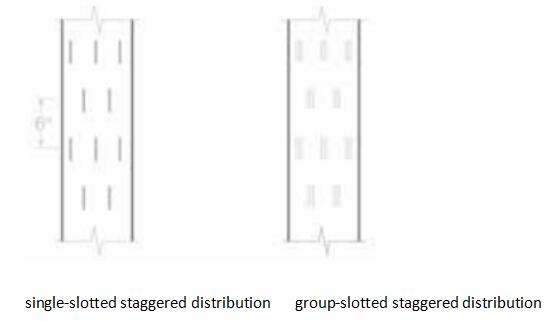

Slotted Pipe description1.jpgSlotted Pipe description.jpgSlotted Pipe description2.jpg

APPLICATION

The slotted liners are usually less costly. They have smaller inflow areas and experience higher pressure drops during production. Slotted liners also plug more readily than screens.They are used where well productivity is small and economics cannot support the use of screen.

Specification

Size:2-3/8"~20

Slot Type: Rectangle,Keystone

Thread:LC,SC,BC,RT-BC,100% replace premium connectionfor example:Vamand Hunting;

Grade:All grade of APl Stainless ,Steel


API Casing

ID mm

Length
m

Slot
Length
mm

Slot No.
No./m

Slot
width
mm

Slot
Tolerance

Valid
Filter Area
cm/m

Max
Strength
kn

Spec
mm

Thickness
mm

Per Weight
kg/m

60.32

s

6.84

50.3

3


200

0.3

±50

48

512.54

73.02

5.5

9.15

62

240

57.6

688.55

88.9

6.5

13.22

75.9

280

67.2

995.1

101.6

6.5

15.22

88.6

300

72

1151.2

114.3

7

18.47

100.3

10

320

76.8

1400.4

127

7.52

22.13

112

340

81.6

1673.8

139.7

7.72

25.11

124.3

360

86.4

1900.2

9.17

29.48

121.4

360

86.4

2232.4

168.3

8.94

35.09

150.4

400

96

2672.95

177.8

8.05

33.68

161.7

440

105.6

2559.2

9.19

38.19

159.4

440

105.6

2940.7
