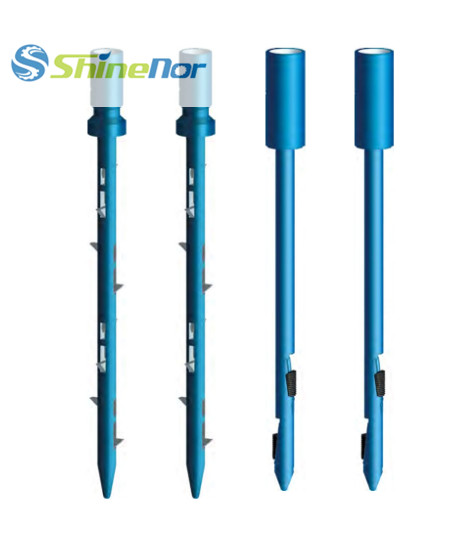

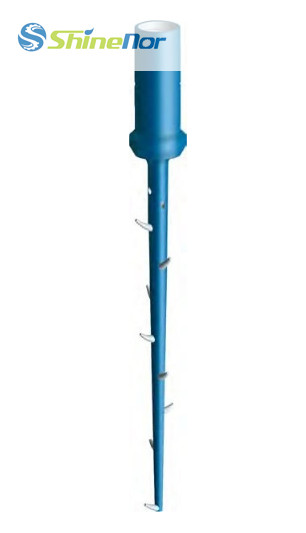

External Hook

API Oil Well Fishing Tools External Hook

The external hook is used for fishing all kinds of ropes, lifting bail, hollow short cylindersshort rope slings, from the casing or tubing. When the external hook can be inserted into the ropes or other fishes,then pick up the drilling tool and the hook tooth will hook the fishes and take them to the ground.

Description
Inquiry

Specification

Model	Max. OD mm(inch)	Conn.	Casing/Tubing Size
WG73	73(2 7/8)	2 3/8UP TBG	3 1/2 Tubing
WG95	95(3 3/4)	NC26	4 1/2 Tubing
WG114	114(4 1/2)	NC31	5 1/2 Casing
WG150	150(5 29/32)	NC38	7 Casing
WG190	190(7 31/64)	NC38	9 5/8 Casing
