Junk Mill

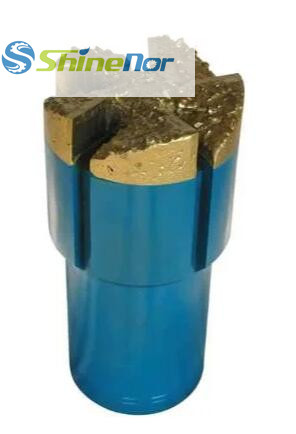

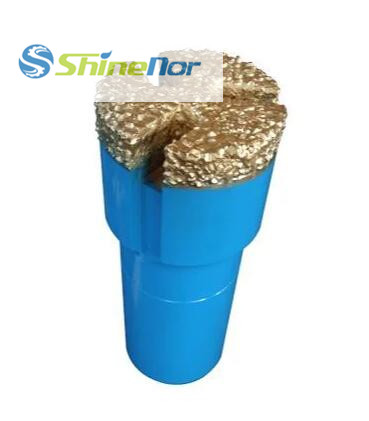

API Flat Bottom Junk Mills

Milling tool is a kind of tool for milling the fishes. Such as bits, cone, cutter gauge, slip elements, swivel wash pipes, subs, parts of deep-well pump, etc. The flat bottom and concave junk mill milling the fishes with the effect of drilling pressure by the YD alloy and anti-abrasive material on its bottom surface. The junk was carried out of well by the drilling fluid.

Description
Inquiry

Specification

Flat bottom junk mill specification

Model	OD mm(inch)	Conn.	OAL mm(inch)
PMX105	105(4 9/64)	NC23	343(13 1/2)
PMX114	114(4 1/2)	NC26	406(16)
PMX140	140(5 33/64)	3 1/2REG	445(17 1/2)
PMX195	195(7 11/16)	4 1/2REG	540(21 17/64)
PMX215	215(8 15/32)	4 1/2REG	540(21 17/64)
PMX311	311(12 1/4)	6 5/8REG	595(23 27/64)
PMX406	406(16)	7 5/8REG	650(25 19/32)

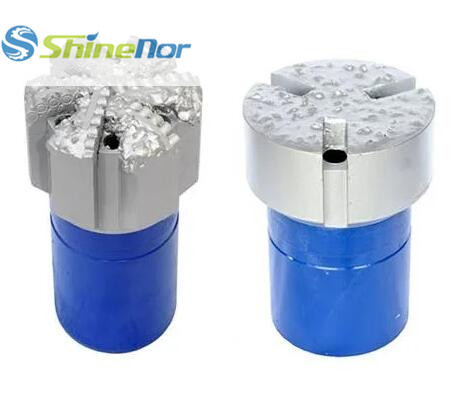

Concave junk mill specification

Model	OD mm(inch)	OAL mm(inch)	Conn.
AMX260	260(10 15/64)	400(15 3/4)	6 5/8REG
wG311	311(12 1/4)	440(17 21/64)	6 5/8REG
WG216	215.9(8 1/2)	400(15 3/4)	NC50
AMX191	190.5(7 1/2)	400(15 3/4)	4 1/2REG
